APT5010JLLU2

APT5010JLLU2

Part NumberAPT5010JLLU2

ManufacturerMicrosemi Corporation

DescriptionMOSFET N-CH 500V 41A SOT-227

DatasheetAPT5010JLLU2

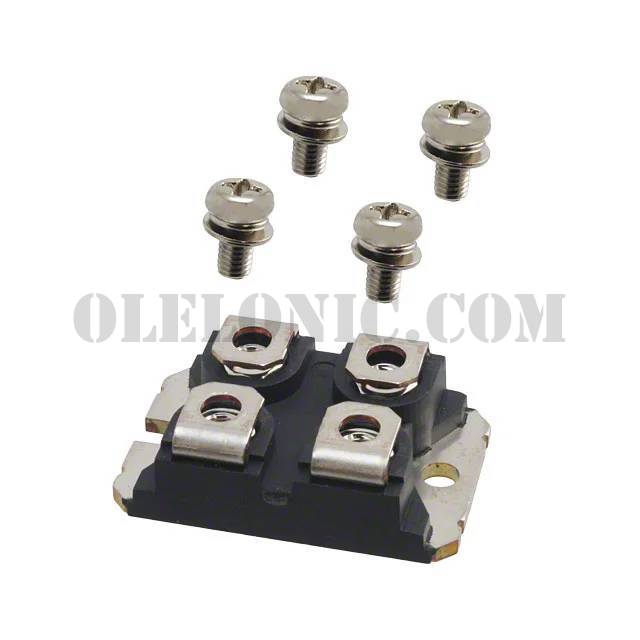

Package / CaseSOT-227-4, miniBLOC

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 500V 41A (Tc) 378W (Tc) Chassis Mount SOT-227

To learn about the specification of APT5010JLLU2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APT5010JLLU2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APT5010JLLU2.
We are offering APT5010JLLU2 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APT5010JLLU2 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	APT5010JLLU2
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Packaging	Bulk
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500V
Current - Continuous Drain (Id) @ 25°C	41A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	100mOhm @ 23A, 10V
Vgs(th) (Max) @ Id	5V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs	96nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	4360pF @ 25V
FET Feature	-
Power Dissipation (Max)	378W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Supplier Device Package	SOT-227
Package / Case	SOT-227-4, miniBLOC
