APT25GR120SD15
APT25GR120SD15
Part Number APT25GR120SD15

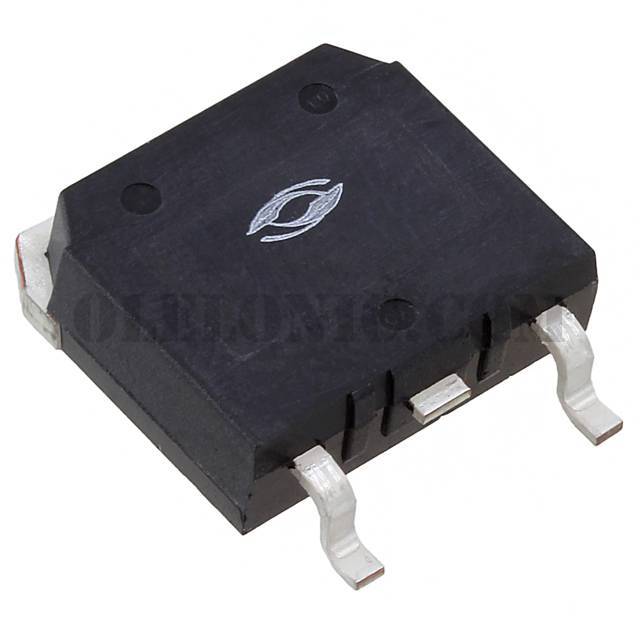

Description IGBT 1200V 75A 521W D3PAK
Package / Case TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description IGBT NPT 1200V 75A 521W Surface Mount D3Pak
To learn about the specification of APT25GR120SD15, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APT25GR120SD15 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APT25GR120SD15.
We are offering APT25GR120SD15 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
APT25GR120SD15 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet APT25GR120(B,S)D15
Standard Package 1
Manufacturer Microsemi Corporation
Series -
Packaging Tube
Part Status Active
IGBT Type NPT
Voltage - Collector Emitter Breakdown (Max) 1200V
Current - Collector (Ic) (Max) 75A
Current - Collector Pulsed (Icm) 100A
Vce(on) (Max) @ Vge, Ic 3.2V @ 15V, 25A
Power - Max 521W
Switching Energy 742µJ (on), 427µJ (off)
Input Type Standard
Gate Charge 203nC
Td (on/off) @ 25°C 16ns/122ns
Test Condition 600V, 25A, 4.3Ohm, 15V
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Supplier Device Package D3Pak
