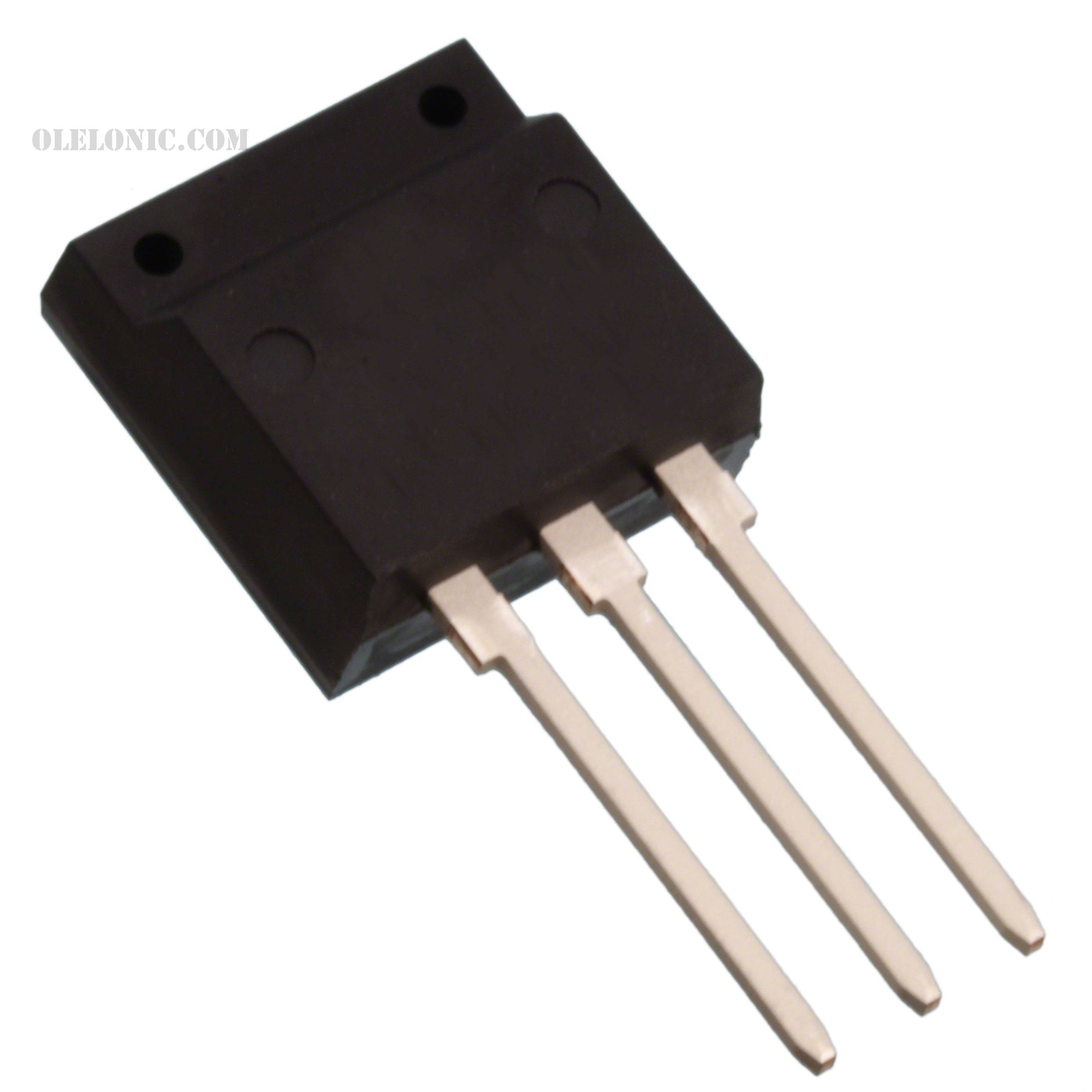

AOWF9N70

Part NumberAOWF9N70

ManufacturerAlpha & Omega Semiconductor Inc.

DescriptionMOSFET N-CH 700V 9A TO262F

DatasheetAOWF9N70

Package / CaseTO-262-3 Full Pack, I²Pak

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 700V 9A (Tc) 28W (Tc) Through Hole

To learn about the specification of AOWF9N70, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AOWF9N70 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AOWF9N70.
We are offering AOWF9N70 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AOWF9N70 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

AOWF9N70

Standard Package

1000

Manufacturer

Alpha & Omega Semiconductor Inc.

Series

Packaging

Tube

Part Status

Active

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

700V

Current - Continuous Drain (Id) @ 25°C

9A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

1.2Ohm @ 4.5A, 10V

Vgs(th) (Max) @ Id

4.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

35nC @ 10V

Vgs (Max)

±30V

Input Capacitance (Ciss) (Max) @ Vds

1630pF @ 25V

FET Feature

Power Dissipation (Max)

28W (Tc)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Through Hole

Package / Case

TO-262-3 Full Pack, I²Pak
