AON7292

AON7292

Part NumberAON7292

ManufacturerAlpha & Omega Semiconductor Inc.

DescriptionMOSFET N-CH 100V 23A 8DFN

DatasheetAON7292

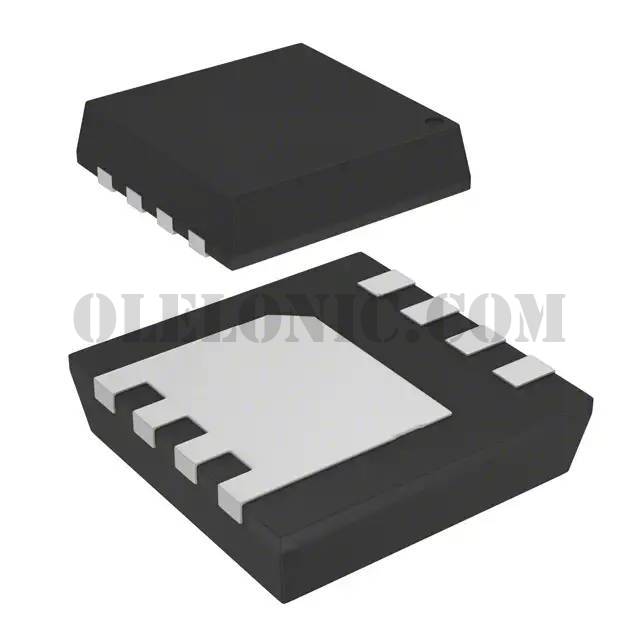

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 9A (Ta), 23A (Tc) 4.1W (Ta), 28W (Tc) Surface Mount 8-DFN-EP (3.3x3.3)

To learn about the specification of AON7292, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AON7292 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AON7292.
We are offering AON7292 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AON7292 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	AON7292
Standard Package	3000
Manufacturer	Alpha & Omega Semiconductor Inc.
Series	AlphaMOS
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	9A (Ta), 23A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	24mOhm @ 9A, 10V
Vgs(th) (Max) @ Id	2.6V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	25nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1170pF @ 50V
FET Feature	-
Power Dissipation (Max)	4.1W (Ta), 28W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DFN-EP (3.3x3.3)
Package / Case	8-PowerWDFN
