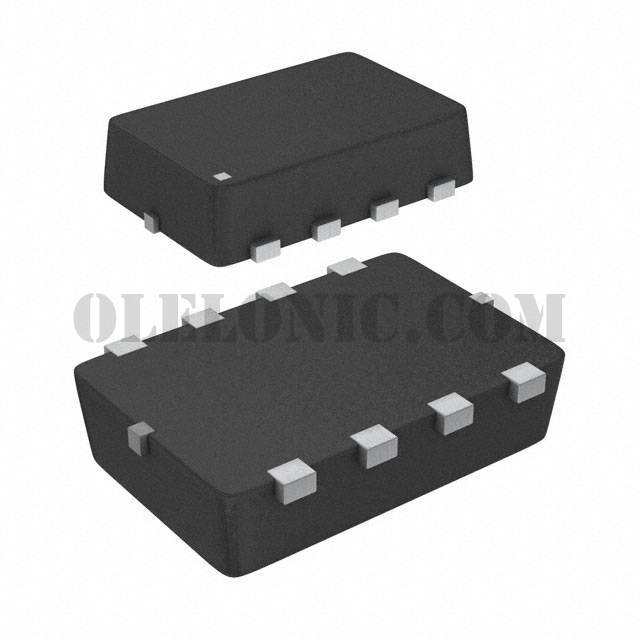

AON4421

Part NumberAON4421

ManufacturerAlpha & Omega Semiconductor Inc.

DescriptionMOSFET P-CH 30V 8A 8DFN

DatasheetAON4421

Package / Case8-SMD, Flat Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 30V 8A (Ta) 2.5W (Ta) Surface Mount 8-DFN (3x2)

To learn about the specification of AON4421, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AON4421 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AON4421.
We are offering AON4421 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AON4421 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

AON4421

Standard Package

Manufacturer

Alpha & Omega Semiconductor Inc.

Series

Packaging

Cut Tape (CT)

Part Status

Discontinued at Digi-Key

FET Type

P-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

30V

Current - Continuous Drain (Id) @ 25°C

8A (Ta)

Drive Voltage (Max Rds On, Min Rds On)

4.5V, 10V

Rds On (Max) @ Id, Vgs

26mOhm @ 8A, 10V

Vgs(th) (Max) @ Id

1.8V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

21nC @ 10V

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

1120pF @ 15V

FET Feature

Power Dissipation (Max)

2.5W (Ta)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

8-DFN (3x2)

Package / Case

8-SMD, Flat Lead
