AON3414

AON3414

Part NumberAON3414

ManufacturerAlpha & Omega Semiconductor Inc.

DescriptionMOSFET NCH 30V 10.5A DFN

DatasheetAON3414

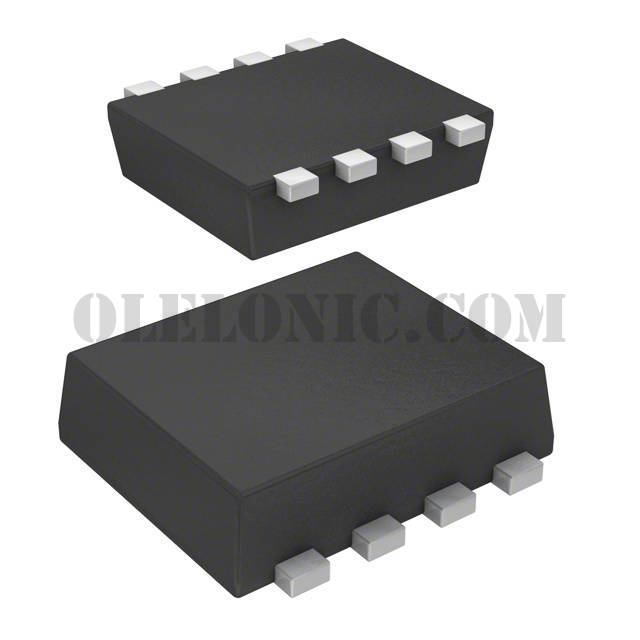

Package / Case8-SMD, Flat Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 10.5A (Ta) 3.1W (Ta) Surface Mount 8-DFN (2.9x2.3)

To learn about the specification of AON3414, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AON3414 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AON3414.
We are offering AON3414 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AON3414 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	AON3414
Standard Package	1
Manufacturer	Alpha & Omega Semiconductor Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	10.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	17mOhm @ 9A, 10V
Vgs(th) (Max) @ Id	2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	25nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	690pF @ 15V
FET Feature	-
Power Dissipation (Max)	3.1W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DFN (2.9x2.3)
Package / Case	8-SMD, Flat Lead
