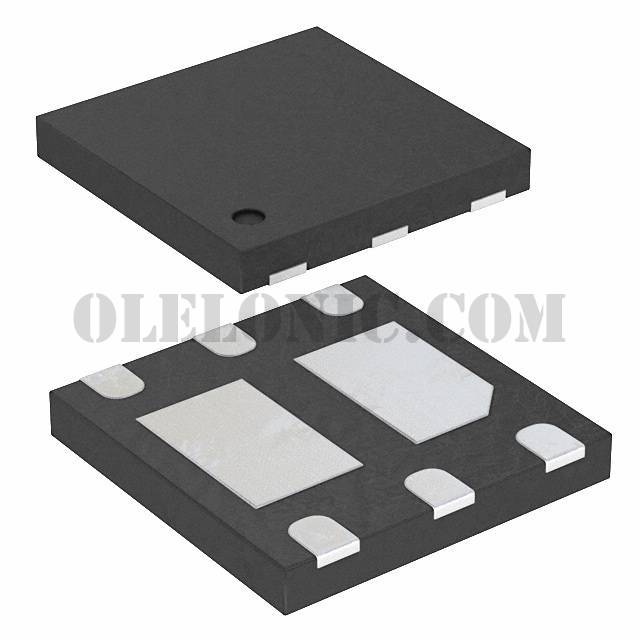

AON2812

Part NumberAON2812

ManufacturerAlpha & Omega Semiconductor Inc.

DescriptionMOSFET 2N-CH 30V 4.5A

DatasheetAON2812

Package / Case6-UDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 30V 4.5A 2.5W Surface Mount 6-DFN-EP (2x2)

To learn about the specification of AON2812, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AON2812 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AON2812.
We are offering AON2812 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AON2812 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays

Datasheet

AON2812

Standard Package

3000

Manufacturer

Alpha & Omega Semiconductor Inc.

Series

AlphaMOS

Packaging

Tape & Reel (TR)

Part Status

Active

FET Type

2 N-Channel (Dual)

FET Feature

Logic Level Gate

Drain to Source Voltage (Vdss)

30V

Current - Continuous Drain (Id) @ 25°C

4.5A

Rds On (Max) @ Id, Vgs

37mOhm @ 2A, 10V

Vgs(th) (Max) @ Id

1.4V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

10nC @ 10V

Input Capacitance (Ciss) (Max) @ Vds

235pF @ 15V

Power - Max

2.5W

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Package / Case

6-UDFN Exposed Pad

Supplier Device Package

6-DFN-EP (2x2)
