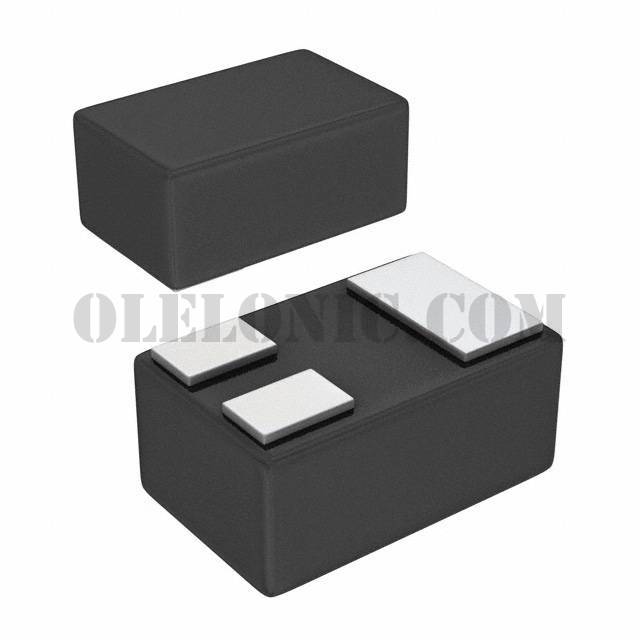

AON1606

Part NumberAON1606

ManufacturerAlpha & Omega Semiconductor Inc.

DescriptionMOSFET N-CH 20V 0.7A 3DFN

DatasheetAON1606

Package / Case3-UFDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 20V 700mA (Ta) 900mW (Ta) Surface Mount 3-DFN (1.0 x 0.60)

To learn about the specification of AON1606, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AON1606 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AON1606.
We are offering AON1606 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AON1606 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

AON1606

Standard Package

10000

Manufacturer

Alpha & Omega Semiconductor Inc.

Series

Packaging

Tape & Reel (TR)

Part Status

Active

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

20V

Current - Continuous Drain (Id) @ 25°C

700mA (Ta)

Drive Voltage (Max Rds On, Min Rds On)

1.5V, 4.5V

Rds On (Max) @ Id, Vgs

275mOhm @ 400mA, 4.5V

Vgs(th) (Max) @ Id

1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

850nC @ 4.5V

Vgs (Max)

±8V

Input Capacitance (Ciss) (Max) @ Vds

62.5pF @ 10V

FET Feature

Power Dissipation (Max)

900mW (Ta)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

3-DFN (1.0 x 0.60)

Package / Case

3-UFDFN
