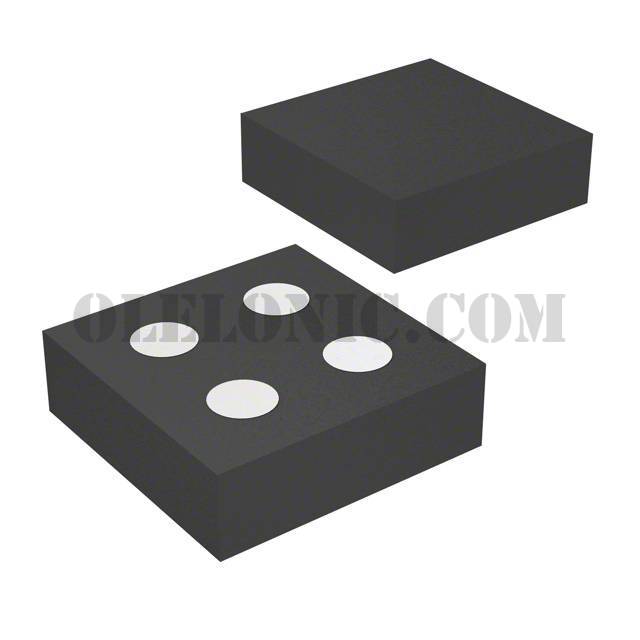

AOC2412

Part NumberAOC2412

ManufacturerAlpha & Omega Semiconductor Inc.

DescriptionMOSFET N-CH 20V 4.5A 4WLCSP

DatasheetAOC2412

Package / Case4-SMD, No Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 20V 4.5A (Ta) 550mW (Ta) Surface Mount 4-AlphaDFN (1.57x1.57)

To learn about the specification of AOC2412, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AOC2412 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AOC2412.
We are offering AOC2412 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AOC2412 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

AOC2412

Standard Package

3000

Manufacturer

Alpha & Omega Semiconductor Inc.

Series

Packaging

Tape & Reel (TR)

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

20V

Current - Continuous Drain (Id) @ 25°C

4.5A (Ta)

Drive Voltage (Max Rds On, Min Rds On)

1.8V, 4.5V

Rds On (Max) @ Id, Vgs

23mOhm @ 1.5A, 4.5V

Vgs(th) (Max) @ Id

1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

32nC @ 4.5V

Vgs (Max)

±8V

Input Capacitance (Ciss) (Max) @ Vds

1842pF @ 10V

FET Feature

Power Dissipation (Max)

550mW (Ta)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

4-AlphaDFN (1.57x1.57)

Package / Case

4-SMD, No Lead
