AO3160E

AO3160E

Part NumberAO3160E

ManufacturerAlpha & Omega Semiconductor Inc.

Description600V,0.04A N-CHANNEL MOSFET

DatasheetAO3160E

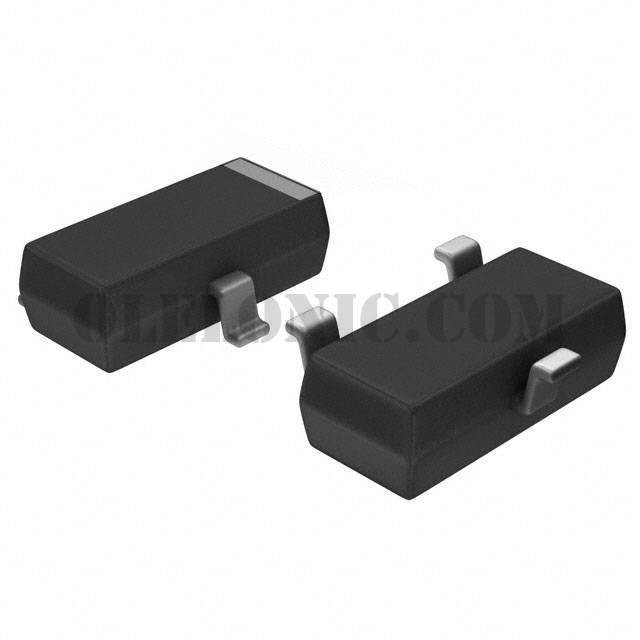

Package / CaseTO-236-3, SC-59, SOT-23-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 40mA (Ta) 1.39W (Ta) Surface Mount SOT-23A-3

To learn about the specification of AO3160E, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AO3160E with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AO3160E.
We are offering AO3160E for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AO3160E - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	AO3160E
Standard Package	1
Manufacturer	Alpha & Omega Semiconductor Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	40mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	500Ohm @ 16mA, 10V
Vgs(th) (Max) @ Id	3.2V @ 8µA
Gate Charge (Qg) (Max) @ Vgs	900pC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	9.5pF @ 25V
FET Feature	-
Power Dissipation (Max)	1.39W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23A-3
Package / Case	TO-236-3, SC-59, SOT-23-3
