ALD1103PBL

ALD1103PBL

Part NumberALD1103PBL

ManufacturerAdvanced Linear Devices Inc.

DescriptionMOSFET 2N/2P-CH 10.6V 14DIP

DatasheetALD1103

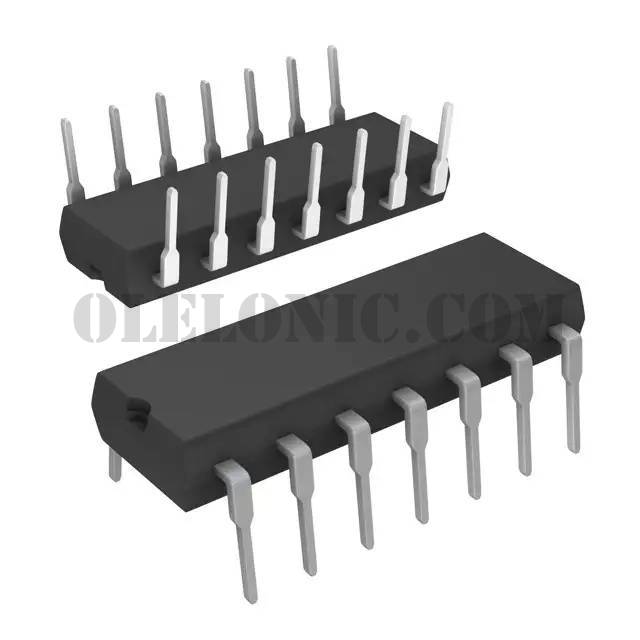

Package / Case14-DIP (0.300", 7.62mm)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N and 2 P-Channel Matched Pair 10.6V 40mA, 16mA 500mW Through Hole 14-PDIP

To learn about the specification of ALD1103PBL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ALD1103PBL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ALD1103PBL.
We are offering ALD1103PBL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ALD1103PBL - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	ALD1103
Standard Package	50
Manufacturer	Advanced Linear Devices Inc.
Series	-
Packaging	Tube
Part Status	Active
FET Type	2 N and 2 P-Channel Matched Pair
FET Feature	Standard
Drain to Source Voltage (Vdss)	10.6V
Current - Continuous Drain (Id) @ 25°C	40mA, 16mA
Rds On (Max) @ Id, Vgs	75Ohm @ 5V
Vgs(th) (Max) @ Id	1V @ 10µA
Gate Charge (Qg) (Max) @ Vgs	-
Input Capacitance (Ciss) (Max) @ Vds	10pF @ 5V
Power - Max	500mW
Operating Temperature	0°C ~ 70°C (TJ)
Mounting Type	Through Hole
Package / Case	14-DIP (0.300", 7.62mm)
Supplier Device Package	14-PDIP
