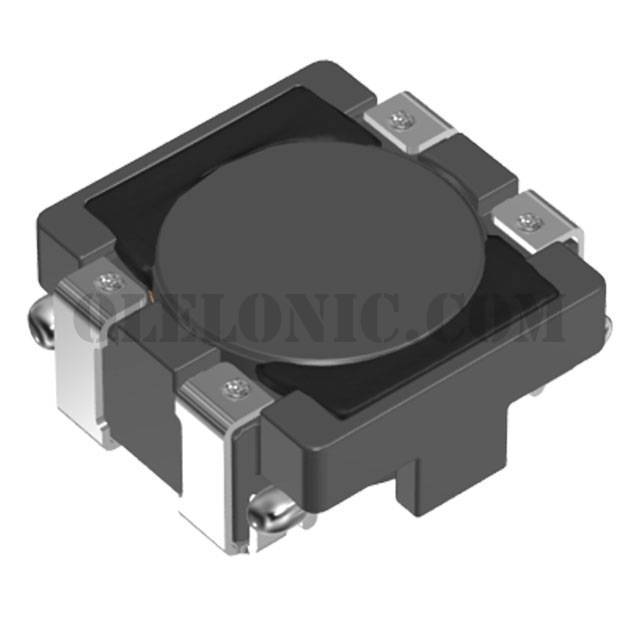

ACM4520V-421-2P-TL00

Part NumberACM4520V-421-2P-TL00

ManufacturerTDK Corporation

DescriptionCMC 1.4A 2LN 420OHM SMD AEC-Q200

DatasheetACM4520V Series

Package / CaseHorizontal, 4 PC Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2 Line Common Mode Choke Surface Mount 420 Ohms @ 100MHz 1.4A DCR 55mOhm

To learn about the specification of ACM4520V-421-2P-TL00, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ACM4520V-421-2P-TL00 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ACM4520V-421-2P-TL00.
We are offering ACM4520V-421-2P-TL00 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ACM4520V-421-2P-TL00 - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

ACM4520V Series

Standard Package

800

Manufacturer

TDK Corporation

Series

ACM-V

Packaging

Tape & Reel (TR)

Part Status

Active

Filter Type

Power Line

Number of Lines

Impedance @ Frequency

420 Ohms @ 100MHz

Current Rating (Max)

1.4A

DC Resistance (DCR) (Max)

55mOhm

Voltage Rating - DC

50V

Voltage Rating - AC

Operating Temperature

-40°C ~ 125°C

Ratings

AEC-Q200

Approvals

Features

Mounting Type

Surface Mount

Size / Dimension

0.185" L x 0.177" W (4.70mm x 4.50mm)

Height (Max)

0.079" (2.00mm)

Package / Case

Horizontal, 4 PC Pad
