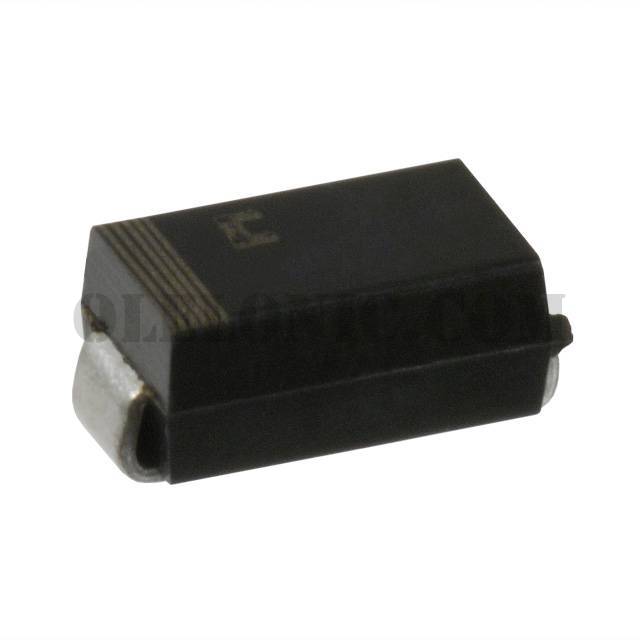

ACGRA4001-HF

ACGRA4001-HF

Part NumberACGRA4001-HF

ManufacturerComchip Technology

DescriptionDIODE GEN PURP 50V 1A DO214AC

DatasheetACGRA4001-HF ~ ACGRA4007-HF

Package / CaseDO-214AC, SMA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 50V 1A Surface Mount DO-214AC (SMA)

To learn about the specification of ACGRA4001-HF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ACGRA4001-HF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ACGRA4001-HF.
We are offering ACGRA4001-HF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ACGRA4001-HF - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	ACGRA4001-HF ~ ACGRA4007-HF
Standard Package	5000
Manufacturer	Comchip Technology
Series	Automotive, AEC-Q101
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	50V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 1A
Speed	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	2.5µs
Current - Reverse Leakage @ Vr	5µA @ 50V
Capacitance @ Vr, F	2.5pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	DO-214AC, SMA
Supplier Device Package	DO-214AC (SMA)
Operating Temperature - Junction	-55°C ~ 150°C
