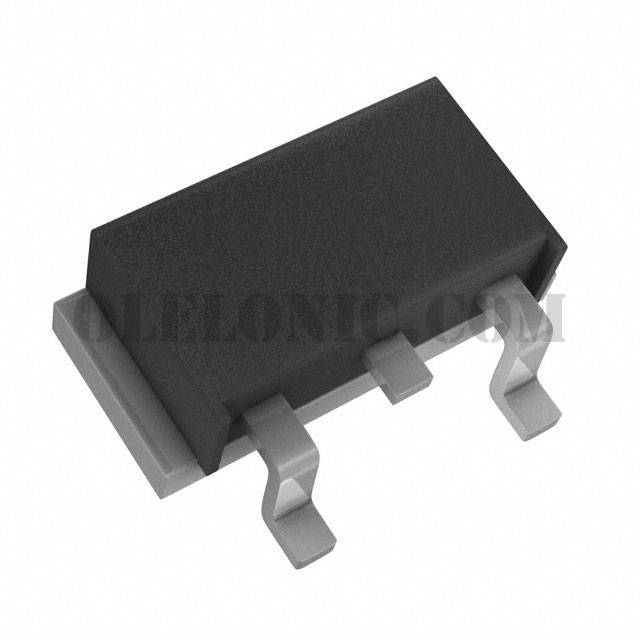

80CNQ045SL

Part Number80CNQ045SL

ManufacturerSMC Diode Solutions

DescriptionDIODE SCHOTTKY 45V 40A PRM2-SL

Datasheet80CNQ035, 040, 045 Series

Package / CasePRM2-SL

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Cathode Schottky 45V 40A Surface Mount PRM2-SL

To learn about the specification of 80CNQ045SL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 80CNQ045SL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 80CNQ045SL.
We are offering 80CNQ045SL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

80CNQ045SL - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	80CNQ035, 040, 045 Series
Standard Package	100
Manufacturer	SMC Diode Solutions
Series	-
Packaging	Bulk
Part Status	Active
Diode Configuration	1 Pair Common Cathode
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	45V
Current - Average Rectified (Io) (per Diode)	40A
Voltage - Forward (Vf) (Max) @ If	660mV @ 40A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	5mA @ 45V
Operating Temperature - Junction	-55°C ~ 150°C
Mounting Type	Surface Mount
Package / Case	PRM2-SL
Supplier Device Package	PRM2-SL
