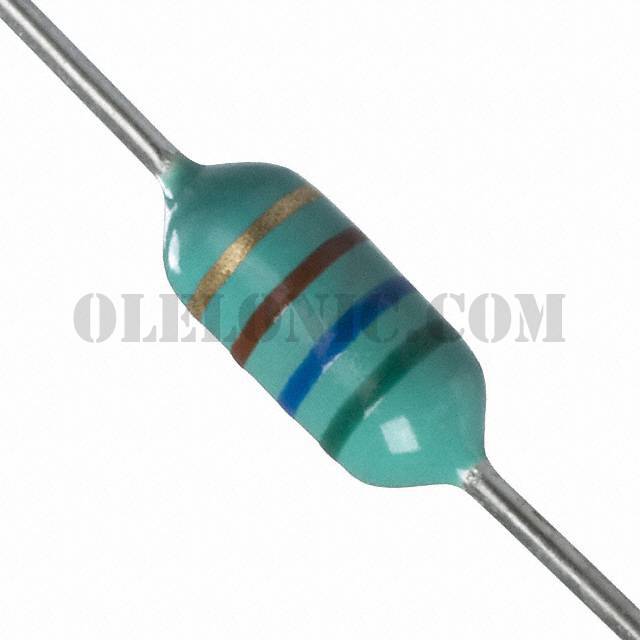

78F561J-RC

Part Number78F561J-RC

ManufacturerBourns Inc.

DescriptionFIXED IND 560UH 85MA 15.5 OHM TH

Datasheet78F Series

Package / CaseAxial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description560µH Unshielded Wirewound Inductor 85mA 15.5Ohm Max Axial

To learn about the specification of 78F561J-RC, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 78F561J-RC with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 78F561J-RC.
We are offering 78F561J-RC for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

78F561J-RC - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

78F Series

Standard Package

5000

Manufacturer

Bourns Inc.

Series

78F

Packaging

Bulk

Part Status

Active

Type

Wirewound

Material - Core

Ferrite

Inductance

560µH

Tolerance

±5%

Current Rating (Amps)

85mA

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

15.5Ohm Max

Q @ Freq

60 @ 790kHz

Frequency - Self Resonant

2.35MHz

Ratings

Operating Temperature

-55°C ~ 105°C

Inductance Frequency - Test

790kHz

Mounting Type

Through Hole

Package / Case

Axial

Supplier Device Package

Axial

Size / Dimension

0.110" Dia x 0.280" L (2.79mm x 7.11mm)

Height - Seated (Max)

Base Part Number

78F
