784773022
784773022

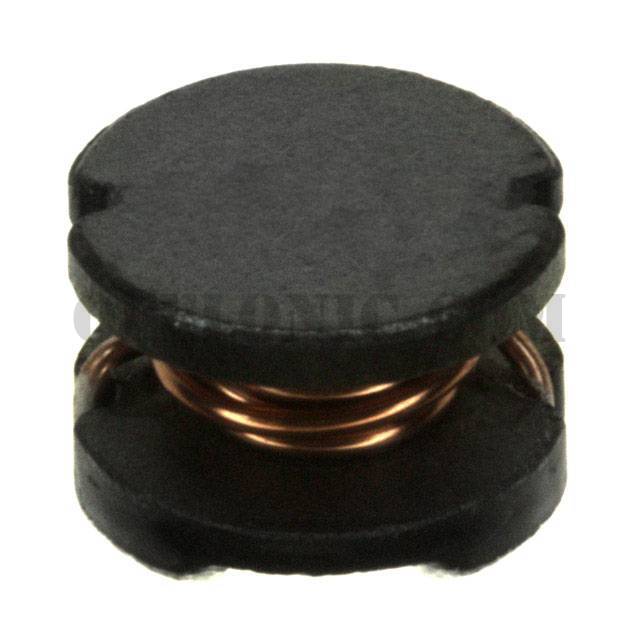

Part Number 784773022 Description FIXED IND 2.2UH 2.5A 71 MOHM SMD Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 2.2µH Unshielded Wirewound Inductor 2.5A 71mOhm Max Nonstandard
To learn about the specification of 784773022, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 784773022 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 784773022.
We are offering 784773022 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
784773022 - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet 784773022 Drawing Standard Package 1500 Manufacturer Wurth Electronics Inc. Series WE-PD2A Packaging Tape & Reel (TR) Part Status Active Type Wirewound Material - Core Ferrite Inductance 2.2µH Tolerance ±20% Current Rating (Amps) 2.5A Current - Saturation 3.38A Shielding Unshielded DC Resistance (DCR) 71mOhm Max Q @ Freq - Frequency - Self Resonant 74MHz Ratings AEC-Q200 Operating Temperature -40°C ~ 125°C Inductance Frequency - Test 10kHz Mounting Type Surface Mount Package / Case Nonstandard Supplier Device Package 4532 Size / Dimension 0.177" L x 0.157" W (4.50mm x 4.00mm) Height - Seated (Max) 0.138" (3.50mm)
