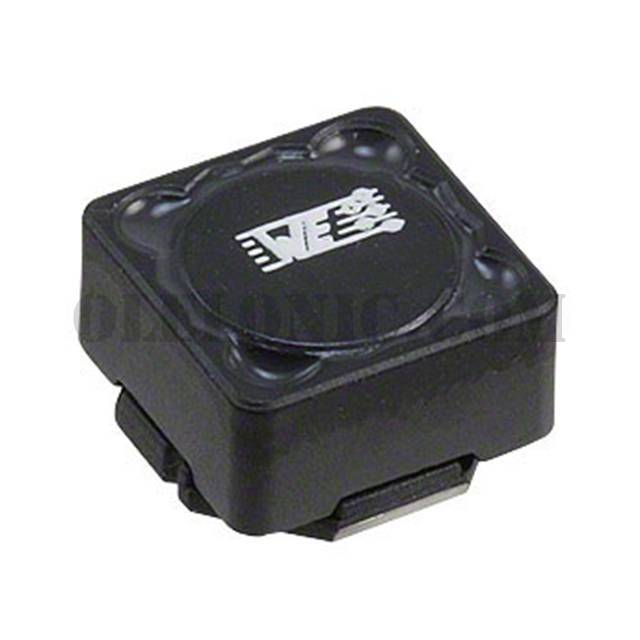

Part Number7687714221

ManufacturerWurth Electronics Inc.

DescriptionFIXED IND 220UH 950MA 680 MOHM

Datasheet7687714221 Drawing

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description220µH Shielded Wirewound Inductor 950mA 680mOhm Max Nonstandard

To learn about the specification of 7687714221, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 7687714221 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 7687714221.
We are offering 7687714221 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

7687714221 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

7687714221 Drawing

Standard Package

500

Manufacturer

Wurth Electronics Inc.

Series

WE-PD HV

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Wirewound

Material - Core

Inductance

220µH

Tolerance

±20%

Current Rating (Amps)

950mA

Current - Saturation

1.15A

Shielding

Shielded

DC Resistance (DCR)

680mOhm Max

Q @ Freq

Frequency - Self Resonant

3.9MHz

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.394" L x 0.394" W (10.00mm x 10.00mm)

Height - Seated (Max)

0.236" (6.00mm)
