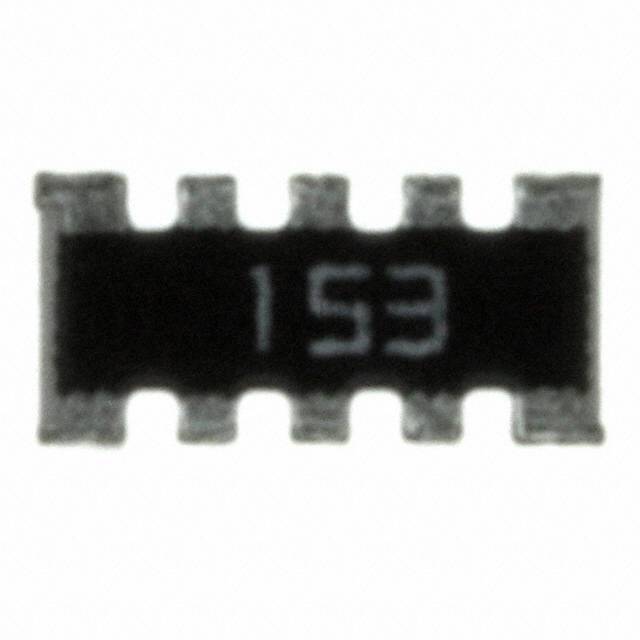

746X101153JP

Part Number746X101153JP

ManufacturerCTS Resistor Products

DescriptionRES ARRAY 8 RES 15K OHM 1206

Datasheet740-746(C,X) Series Datasheet

Package / Case1206 (3216 Metric), Convex, Long Side Terminals

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description15k Ohm ±5% 31mW Power Per Element Bussed 8 Resistor Network/Array ±200ppm/°C 1206 (3216 Metric), Convex, Long Side Terminals

To learn about the specification of 746X101153JP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 746X101153JP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 746X101153JP.
We are offering 746X101153JP for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

746X101153JP - Product Attributes

Categories	Resistors / Resistor Networks, Arrays
Datasheet	740-746(C,X) Series Datasheet
Standard Package	1
Manufacturer	CTS Resistor Products
Series	746
Packaging	Cut Tape (CT)
Part Status	Active
Circuit Type	Bussed
Resistance (Ohms)	15k
Tolerance	±5%
Number of Resistors	8
Resistor Matching Ratio	-
Resistor-Ratio-Drift	-
Number of Pins	10
Power Per Element	31mW
Temperature Coefficient	±200ppm/°C
Operating Temperature	-55°C ~ 125°C
Applications	-
Mounting Type	Surface Mount
Package / Case	1206 (3216 Metric), Convex, Long Side Terminals
Supplier Device Package	-
Size / Dimension	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max)	0.028" (0.70mm)
