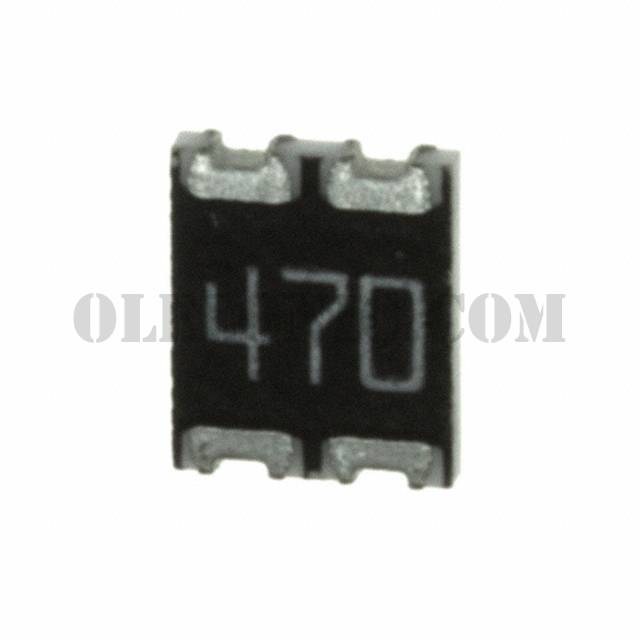

744C043470JP

Part Number744C043470JP

ManufacturerCTS Resistor Products

DescriptionRES ARRAY 2 RES 47 OHM 1210

Datasheet740-746(C,X) Series Datasheet

Package / Case1210 (3225 Metric), Concave, Long Side Terminals

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description47 Ohm ±5% 125mW Power Per Element Isolated 2 Resistor Network/Array ±200ppm/°C 1210 (3225 Metric), Concave, Long Side Terminals

To learn about the specification of 744C043470JP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 744C043470JP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 744C043470JP.
We are offering 744C043470JP for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

744C043470JP - Product Attributes

Categories	Resistors / Resistor Networks, Arrays
Datasheet	740-746(C,X) Series Datasheet
Standard Package	1
Manufacturer	CTS Resistor Products
Series	744
Packaging	Cut Tape (CT)
Part Status	Active
Circuit Type	Isolated
Resistance (Ohms)	47
Tolerance	±5%
Number of Resistors	2
Resistor Matching Ratio	-
Resistor-Ratio-Drift	-
Number of Pins	4
Power Per Element	125mW
Temperature Coefficient	±200ppm/°C
Operating Temperature	-55°C ~ 125°C
Applications	-
Mounting Type	Surface Mount
Package / Case	1210 (3225 Metric), Concave, Long Side Terminals
Supplier Device Package	1206
Size / Dimension	0.126" L x 0.100" W (3.20mm x 2.54mm)
Height - Seated (Max)	0.028" (0.70mm)
