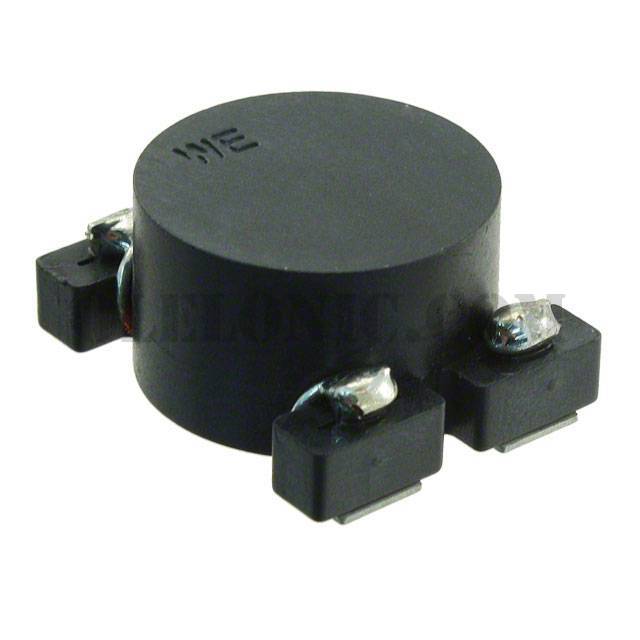

Part Number7448510091

ManufacturerWurth Electronics Inc.

DescriptionINDUCT ARRAY 2 COIL 91NH SMD

Datasheet7448510091

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionShielded 2 Coil Inductor Array 364nH Inductance - Connected in Series 91nH Inductance - Connected in Parallel 3.5mOhm Max DC Resistance (DCR) - Parallel 14.5A Nonstandard

To learn about the specification of 7448510091, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 7448510091 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 7448510091.
We are offering 7448510091 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

7448510091 - Product Attributes

Categories

Inductors, Coils, Chokes / Arrays, Signal Transformers

Datasheet

7448510091

Standard Package

150

Manufacturer

Wurth Electronics Inc.

Series

WE-DD

Packaging

Tape & Reel (TR)

Part Status

Active

Number of Coils

Inductance - Connected In Parallel

91nH

Inductance - Connected In Series

364nH

Tolerance

±20%

Current Rating - Parallel

14.5A

Current Rating - Series

7.25A

Current Saturation - Parallel

120A

Current Saturation - Series

60A

DC Resistance (DCR) - Parallel

3.5mOhm Max

DC Resistance (DCR) - Series

Shielding

Shielded

Ratings

Operating Temperature

-40°C ~ 125°C

Mounting Type

Surface Mount

Package / Case

Nonstandard

Size / Dimension

0.906" L x 0.728" W (23.00mm x 18.50mm)

Height

0.453" (11.50mm)
