744839029220
744839029220

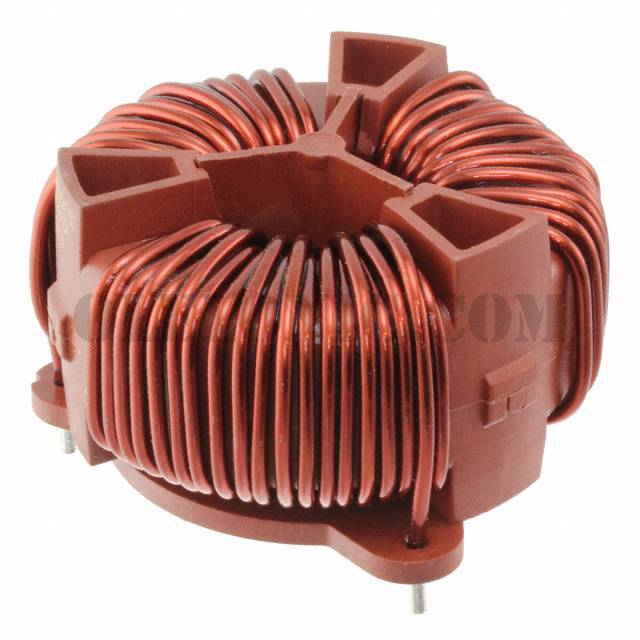

Part Number 744839029220 Description CMC 29MH 22A 3LN TH Package / Case Horizontal, 6 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 29mH @ 10kHz 3 Line Common Mode Choke Through Hole 22A DCR 9mOhm
To learn about the specification of 744839029220, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 744839029220 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 744839029220.
We are offering 744839029220 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
744839029220 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet 744839029220 Datasheet Standard Package 6 Manufacturer Wurth Electronics Inc. Series WE-TPBHV Packaging Tray Part Status Active Filter Type Power Line Number of Lines 3 Inductance @ Frequency 29mH @ 10kHz Current Rating (Max) 22A DC Resistance (DCR) (Max) 9mOhm Voltage Rating - DC - Voltage Rating - AC 760V Operating Temperature -40°C ~ 125°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 2.756" Dia (70.00mm) Height (Max) 1.535" (39.00mm) Package / Case Horizontal, 6 PC Pin
