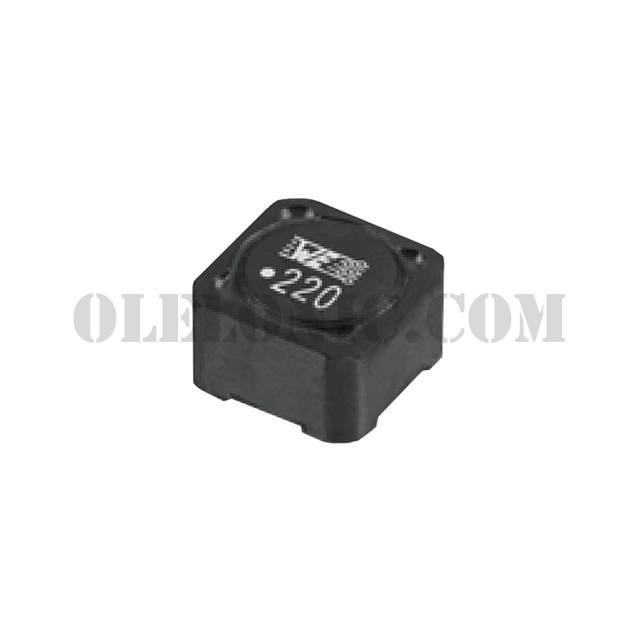

Part Number74477826

Manufacturer

Description

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

74477826 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Standard Package1000
ManufacturerWurth Electronics Inc.
SeriesWE-PD
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance680µH
Tolerance±20%
Current Rating (Amps)220mA
Current - Saturation220mA
ShieldingShielded
DC Resistance (DCR)5.73Ohm Max
Q @ Freq-
Frequency - Self Resonant3.4MHz
RatingsAEC-Q200
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test1kHz
Features-
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max)0.134" (3.40mm)
