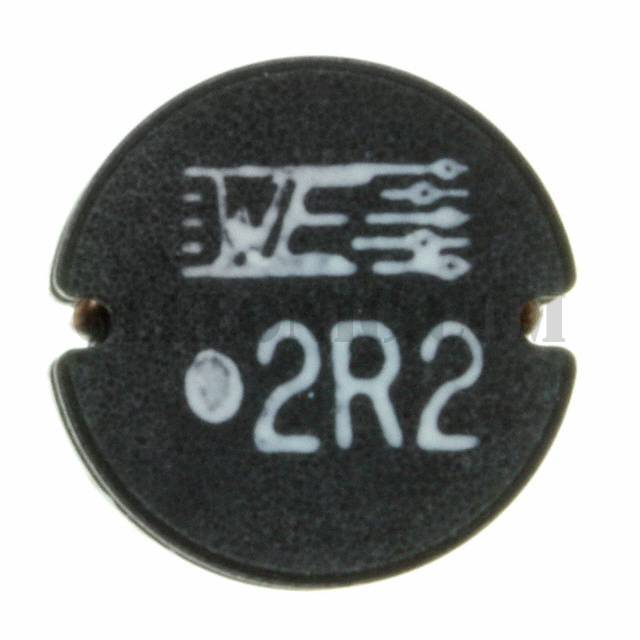

744776022A

Part Number744776022A

ManufacturerWurth Electronics Inc.

DescriptionFIXED IND 2.2UH 5.4A 20 MOHM SMD

Datasheet744776022A

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2.2µH Unshielded Wirewound Inductor 5.4A 20mOhm Max Nonstandard

To learn about the specification of 744776022A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 744776022A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 744776022A.
We are offering 744776022A for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

744776022A - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

744776022A

Standard Package

800

Manufacturer

Wurth Electronics Inc.

Series

WE-PD2

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Wirewound

Material - Core

Ferrite

Inductance

2.2µH

Tolerance

±20%

Current Rating (Amps)

5.4A

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

20mOhm Max

Q @ Freq

35 @ 7.96MHz

Frequency - Self Resonant

68MHz

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

1kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.374" L x 0.374" W (9.50mm x 9.50mm)

Height - Seated (Max)

0.228" (5.80mm)
