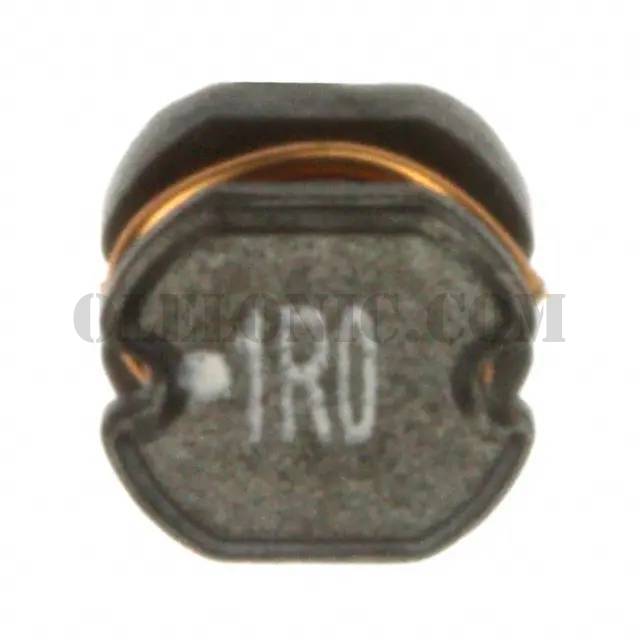

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	7447730
Standard Package	1500
Manufacturer	Wurth Electronics Inc.
Series	WE-PD2
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	1µH
Tolerance	±20%
Current Rating (Amps)	4A
Current - Saturation	5.72A
Shielding	Unshielded
DC Resistance (DCR)	49mOhm Max
Q @ Freq	-
Frequency - Self Resonant	110MHz
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	1kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max)	0.138" (3.50mm)
