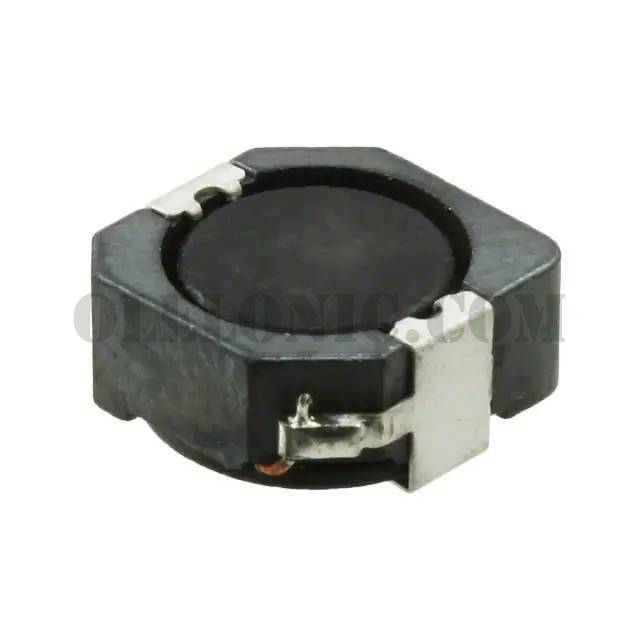

7447714101
7447714101
Part Number 7447714101
Description FIXED IND 100UH 1.5A 198 MOHM
Package / Case Nonstandard
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 100µH Shielded Wirewound Inductor 1.5A 198mOhm Max Nonstandard
To learn about the specification of 7447714101, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 7447714101 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 7447714101.
We are offering 7447714101 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
7447714101 - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet 7447714101
Standard Package 500
Manufacturer Wurth Electronics Inc.
Series WE-PD Performance
Packaging Tape & Reel (TR)
Part Status Active
Type Wirewound
Material - Core Ferrite
Inductance 100µH
Tolerance ±20%
Current Rating (Amps) 1.5A
Current - Saturation 1.8A
Shielding Shielded
DC Resistance (DCR) 198mOhm Max
Q @ Freq -
Frequency - Self Resonant 5.9MHz
Ratings AEC-Q200
Operating Temperature -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.197" (5.00mm)
