7447709100
7447709100

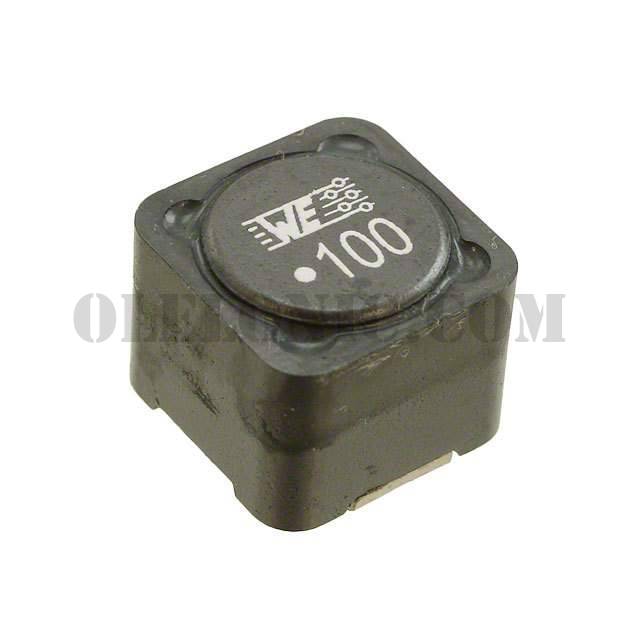

Part Number 7447709100
Description FIXED IND 10UH 7.1A 21 MOHM SMD
Package / Case Nonstandard
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 10µH Shielded Wirewound Inductor 7.1A 21mOhm Max Nonstandard
To learn about the specification of 7447709100, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 7447709100 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 7447709100.
We are offering 7447709100 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
7447709100 - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet 7447709100
Standard Package 1
Manufacturer Wurth Electronics Inc.
Series WE-PD
Packaging Cut Tape (CT)
Part Status Active
Type Wirewound
Material - Core Ferrite
Inductance 10µH
Tolerance ±20%
Current Rating (Amps) 7.1A
Current - Saturation 10.5A
Shielding Shielded
DC Resistance (DCR) 21mOhm Max
Q @ Freq -
Frequency - Self Resonant 21MHz
Ratings AEC-Q200
Operating Temperature -40°C ~ 125°C
Inductance Frequency - Test 1kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) 0.394" (10.00mm)
