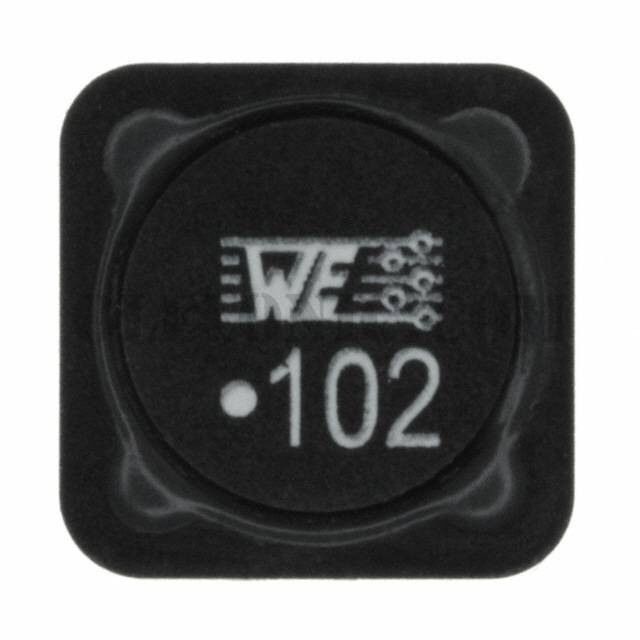

Part Number74477030

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

74477030 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerWurth Electronics Inc.
SeriesWE-PD
PackagingCut Tape (CT)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance1mH
Tolerance±20%
Current Rating (Amps)600mA
Current - Saturation700mA
ShieldingShielded
DC Resistance (DCR)1.82Ohm Max
Q @ Freq-
Frequency - Self Resonant1.8MHz
RatingsAEC-Q200
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test1kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max)0.315" (8.00mm)
