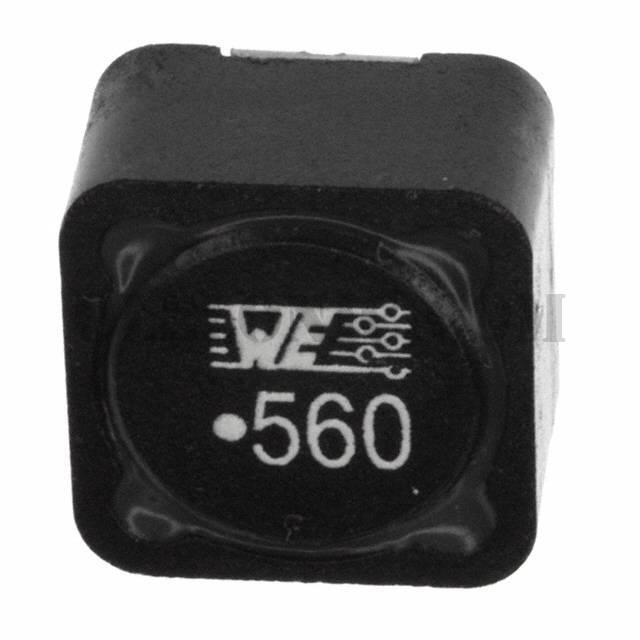

Part Number744770156

ManufacturerWurth Electronics Inc.

DescriptionFIXED IND 56UH 2.4A 110 MOHM SMD

Datasheet744770156

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description56µH Shielded Wirewound Inductor 2.4A 110mOhm Max Nonstandard

To learn about the specification of 744770156, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 744770156 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 744770156.
We are offering 744770156 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

744770156 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

744770156

Standard Package

Manufacturer

Wurth Electronics Inc.

Series

WE-PD

Packaging

Cut Tape (CT)

Part Status

Discontinued at Digi-Key

Type

Wirewound

Material - Core

Ferrite

Inductance

56µH

Tolerance

±20%

Current Rating (Amps)

2.4A

Current - Saturation

2.9A

Shielding

Shielded

DC Resistance (DCR)

110mOhm Max

Q @ Freq

Frequency - Self Resonant

7.1MHz

Ratings

AEC-Q200

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

1kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.472" L x 0.472" W (12.00mm x 12.00mm)

Height - Seated (Max)

0.315" (8.00mm)
