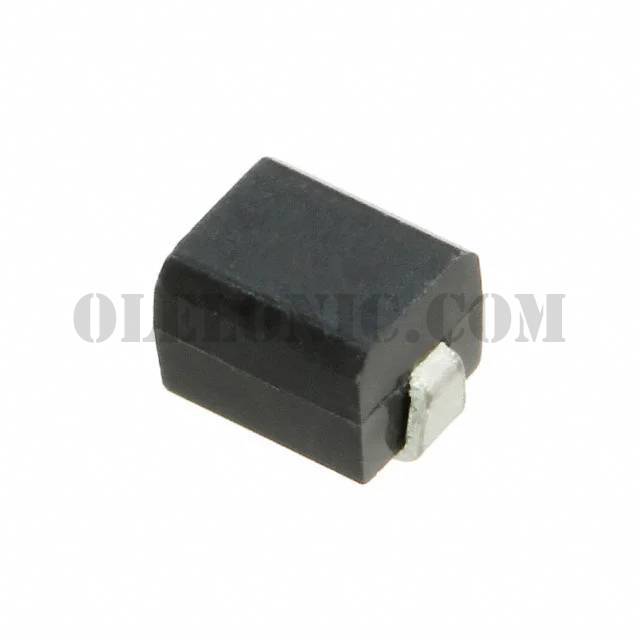

7447649122
7447649122
Part Number 7447649122
Description FIXED IND 22UH 400MA 2.6 OHM SMD
Package / Case Nonstandard
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 22µH Unshielded Inductor 400mA 2.6Ohm Max Nonstandard
To learn about the specification of 7447649122, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 7447649122 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 7447649122.
We are offering 7447649122 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
7447649122 - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet 7447649122 Drawing
Standard Package 1
Manufacturer Wurth Electronics Inc.
Series WE-GFH
Packaging Cut Tape (CT)
Part Status Active
Type -
Material - Core Iron Powder
Inductance 22µH
Tolerance ±10%
Current Rating (Amps) 400mA
Current - Saturation -
Shielding Unshielded
DC Resistance (DCR) 2.6Ohm Max
Q @ Freq 35 @ 1.47MHz
Frequency - Self Resonant 27MHz
Ratings -
Operating Temperature -40°C ~ 125°C
Inductance Frequency - Test 1.47MHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.134" L x 0.098" W (3.40mm x 2.50mm)
Height - Seated (Max) 0.094" (2.40mm)
