744762139A
744762139A

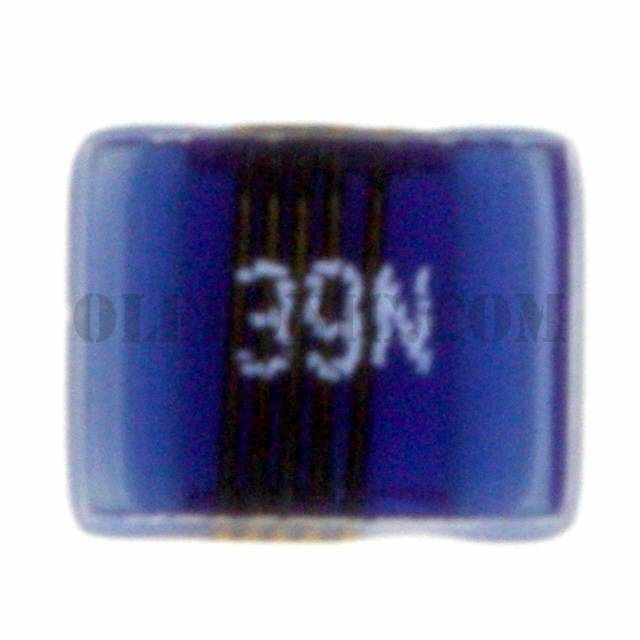

Part Number 744762139A
Description FIXED IND 39NH 1A 100 MOHM SMD
Package / Case 1008 (2520 Metric)
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 39nH Unshielded Wirewound Inductor 1A 100mOhm Max 1008 (2520 Metric)
To learn about the specification of 744762139A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 744762139A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 744762139A.
We are offering 744762139A for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
744762139A - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet 744762139A
Standard Package 1
Manufacturer Wurth Electronics Inc.
Series WE-KI
Packaging Cut Tape (CT)
Part Status Active
Type Wirewound
Material - Core Ceramic
Inductance 39nH
Tolerance ±5%
Current Rating (Amps) 1A
Current - Saturation -
Shielding Unshielded
DC Resistance (DCR) 100mOhm Max
Q @ Freq 60 @ 350MHz
Frequency - Self Resonant 1.5GHz
Ratings -
Operating Temperature -40°C ~ 125°C
Inductance Frequency - Test 100MHz
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Size / Dimension 0.102" L x 0.083" W (2.60mm x 2.10mm)
Height - Seated (Max) 0.075" (1.90mm)
