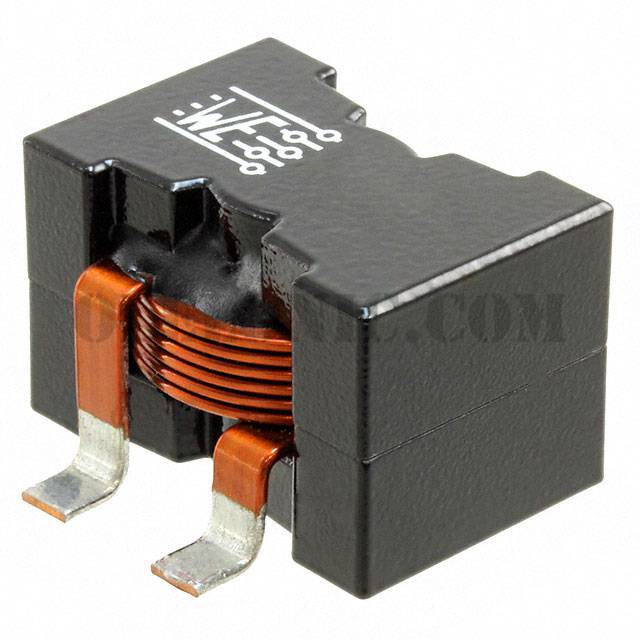

7443640470


7443640470

Part Number7443640470

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

7443640470 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package20
ManufacturerWurth Electronics Inc.
SeriesWE-HCF
PackagingTray
Part StatusActive
TypeWirewound
Material - CoreManganese Zinc Ferrite (MnZn)
Inductance4.7µH
Tolerance±15%
Current Rating (Amps)30A
Current - Saturation78A
ShieldingShielded
DC Resistance (DCR)2.4mOhm
Q @ Freq-
Frequency - Self Resonant20MHz
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package2818
Size / Dimension1.122" L x 0.768" W (28.50mm x 19.50mm)
Height - Seated (Max)0.728" (18.50mm)
