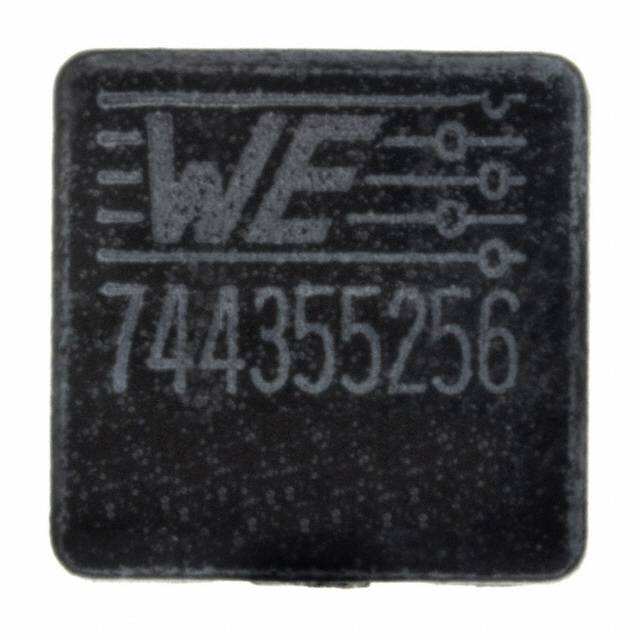

Part Number 744355256
Description FIXED IND 560NH 20A 1.61 MOHM
Package / Case Nonstandard
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 560nH Shielded Wirewound Inductor 20A 1.61mOhm Nonstandard
To learn about the specification of 744355256, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 744355256 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 744355256.
We are offering 744355256 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
744355256 - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet 744355256
Standard Package 800
Manufacturer Wurth Electronics Inc.
Series WE-HCI
Packaging Tape & Reel (TR)
Part Status Active
Type Wirewound
Material - Core -
Inductance 560nH
Tolerance ±20%
Current Rating (Amps) 20A
Current - Saturation 30A
Shielding Shielded
DC Resistance (DCR) 1.61mOhm
Q @ Freq -
Frequency - Self Resonant 100MHz
Ratings AEC-Q200
Operating Temperature -40°C ~ 155°C
Inductance Frequency - Test 100kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 1040
Size / Dimension 0.413" L x 0.402" W (10.50mm x 10.20mm)
Height - Seated (Max) 0.165" (4.20mm)
