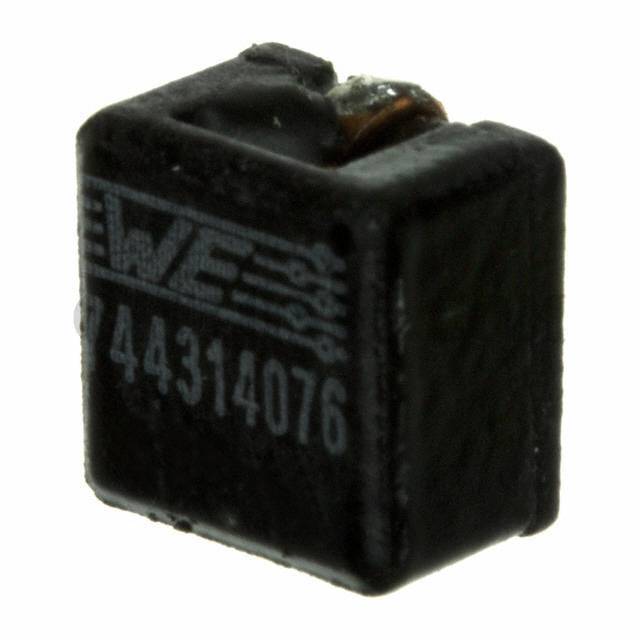

Part Number 744314076
Description FIXED IND 760NH 15.5A 2.25 MOHM
Package / Case Nonstandard
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 760nH Shielded Wirewound Inductor 15.5A 2.25mOhm Nonstandard
To learn about the specification of 744314076, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 744314076 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 744314076.
We are offering 744314076 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
744314076 - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet 744314076
Standard Package 1000
Manufacturer Wurth Electronics Inc.
Series WE-HCI
Packaging Tape & Reel (TR)
Part Status Active
Type Wirewound
Material - Core -
Inductance 760nH
Tolerance ±20%
Current Rating (Amps) 15.5A
Current - Saturation 15A
Shielding Shielded
DC Resistance (DCR) 2.25mOhm
Q @ Freq -
Frequency - Self Resonant 200MHz
Ratings AEC-Q200
Operating Temperature -40°C ~ 150°C
Inductance Frequency - Test 100kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 7050
Size / Dimension 0.276" L x 0.272" W (7.00mm x 6.90mm)
Height - Seated (Max) 0.197" (5.00mm)
