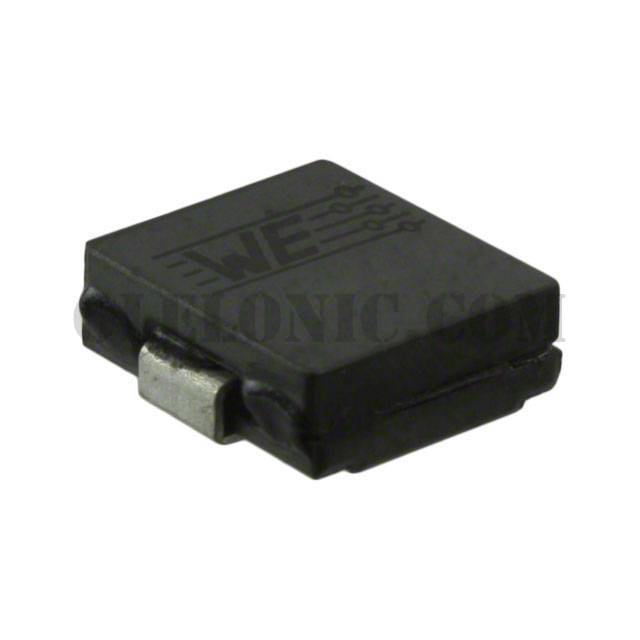

Part Number744304022

ManufacturerWurth Electronics Inc.

DescriptionFIXED IND 220NH 24A 0.17 MOHM

Datasheet744304022

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description220nH Shielded Wirewound Inductor 24A 0.17mOhm Nonstandard

To learn about the specification of 744304022, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 744304022 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 744304022.
We are offering 744304022 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

744304022 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

744304022

Standard Package

700

Manufacturer

Wurth Electronics Inc.

Series

WE-HCM

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Wirewound

Material - Core

Manganese Zinc Ferrite (MnZn)

Inductance

220nH

Tolerance

±20%

Current Rating (Amps)

24A

Current - Saturation

23A

Shielding

Shielded

DC Resistance (DCR)

0.17mOhm

Q @ Freq

Frequency - Self Resonant

70MHz

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.453" L x 0.465" W (11.50mm x 11.80mm)

Height - Seated (Max)

0.161" (4.10mm)
