744045001


744045001

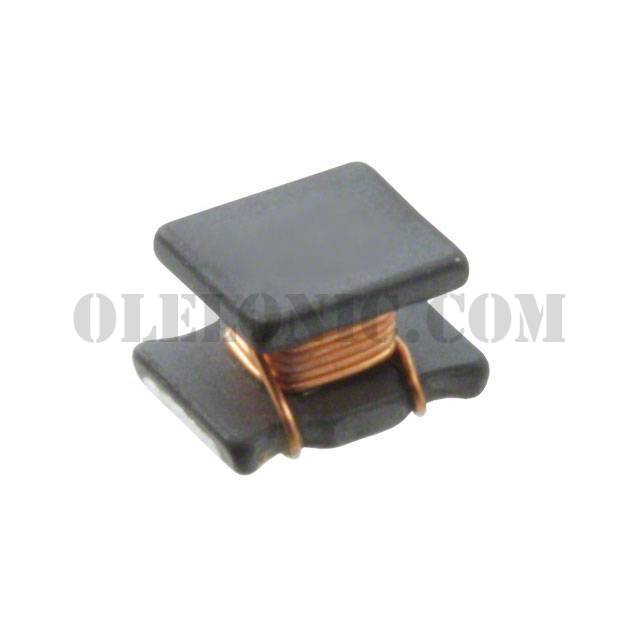

Part Number744045001

Manufacturer

Description

Datasheet

Package / Case1812 (4532 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

744045001 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package500
ManufacturerWurth Electronics Inc.
SeriesWE-LQ
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance1µH
Tolerance±20%
Current Rating (Amps)1.8A
Current - Saturation4.4A
ShieldingUnshielded
DC Resistance (DCR)80mOhm Max
Q @ Freq40 @ 1MHz
Frequency - Self Resonant165MHz
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test1MHz
Mounting TypeSurface Mount
Package / Case1812 (4532 Metric)
Supplier Device Package1812
Size / Dimension0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max)0.114" (2.90mm)
