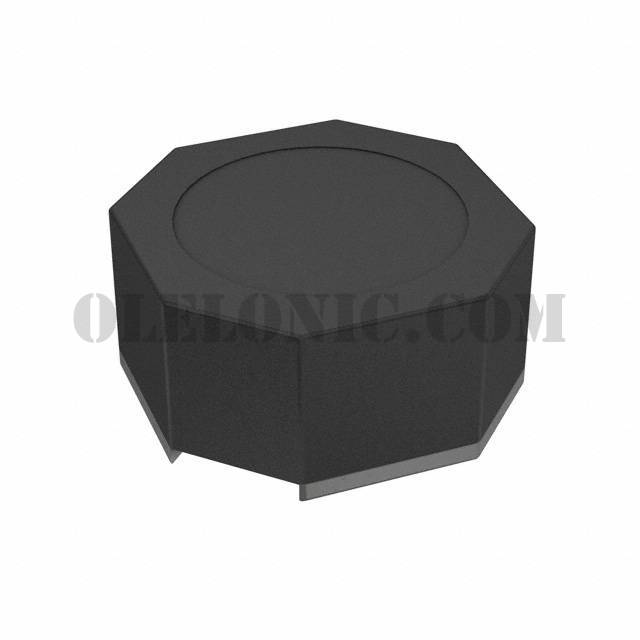

Part Number 744029002
Description FIXED IND 2.2UH 1.5A 105 MOHM
Package / Case Nonstandard
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 2.2µH Shielded Wirewound Inductor 1.5A 105mOhm Max Nonstandard
To learn about the specification of 744029002, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 744029002 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 744029002.
We are offering 744029002 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
744029002 - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet 744029002
Standard Package 1200
Manufacturer Wurth Electronics Inc.
Series WE-TPC
Packaging Tape & Reel (TR)
Part Status Active
Type Wirewound
Material - Core Ferrite
Inductance 2.2µH
Tolerance ±30%
Current Rating (Amps) 1.5A
Current - Saturation 1.15A
Shielding Shielded
DC Resistance (DCR) 105mOhm Max
Q @ Freq -
Frequency - Self Resonant 90MHz
Ratings -
Operating Temperature -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 2828
Size / Dimension 0.110" L x 0.110" W (2.80mm x 2.80mm)
Height - Seated (Max) 0.059" (1.50mm)
