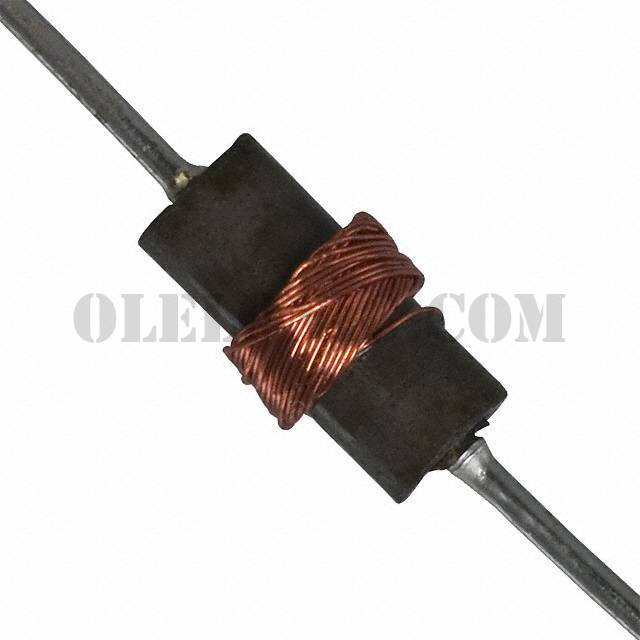

70F225AI

Part Number70F225AI

ManufacturerBourns Inc.

DescriptionFIXED IND 22UH 229MA 2.28 OHM TH

Datasheet70F Series

Package / CaseAxial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description22µH Unshielded Wirewound Inductor 229mA 2.28Ohm Max Axial

To learn about the specification of 70F225AI, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 70F225AI with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 70F225AI.
We are offering 70F225AI for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

70F225AI - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

70F Series

Standard Package

Manufacturer

Bourns Inc.

Series

70F

Packaging

Bulk

Part Status

Obsolete

Type

Wirewound

Material - Core

Iron

Inductance

22µH

Tolerance

±5%

Current Rating (Amps)

229mA

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

2.28Ohm Max

Q @ Freq

51 @ 2.5MHz

Frequency - Self Resonant

13MHz

Ratings

Operating Temperature

-55°C ~ 105°C

Inductance Frequency - Test

2.5MHz

Mounting Type

Through Hole

Package / Case

Axial

Supplier Device Package

Axial

Size / Dimension

0.160" Dia x 0.250" L (4.06mm x 6.35mm)

Height - Seated (Max)

Base Part Number

70F
