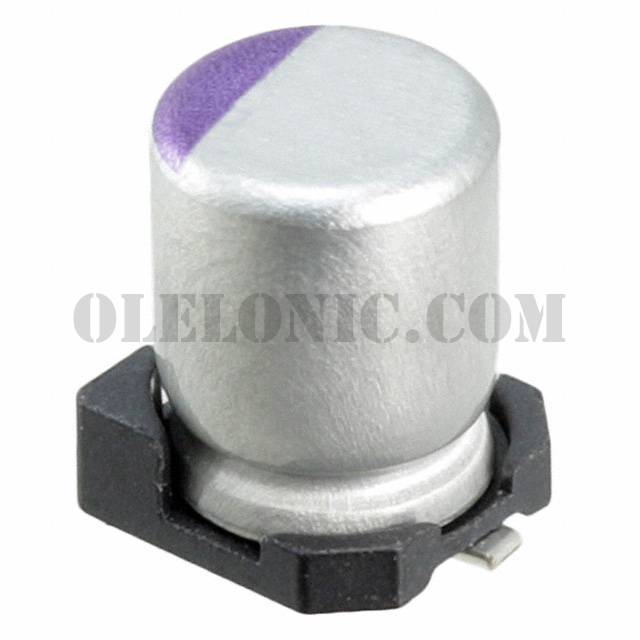

6SVP22M

Part Number6SVP22M

ManufacturerPanasonic Electronic Components

DescriptionCAP ALUM POLY 22UF 20% 6.3V SMD

Datasheet6SVP22M View All Specifications

Package / CaseRadial, Can - SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description22µF 6.3V Aluminum Polymer Capacitor Radial, Can - SMD 200mOhm 2000 Hrs @ 105°C

To learn about the specification of 6SVP22M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 6SVP22M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 6SVP22M.
We are offering 6SVP22M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

6SVP22M - Product Attributes

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	6SVP22M View All Specifications
Standard Package	2000
Manufacturer	Panasonic Electronic Components
Series	OS-CON™, SVP
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Polymer
Capacitance	22µF
Tolerance	±20%
Voltage - Rated	6.3V
ESR (Equivalent Series Resistance)	200mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	37mA @ 120Hz
Ripple Current @ High Frequency	740mA @ 100kHz
Lead Spacing	-
Size / Dimension	0.157" Dia (4.00mm)
Height - Seated (Max)	0.217" (5.50mm)
Surface Mount Land Size	0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
