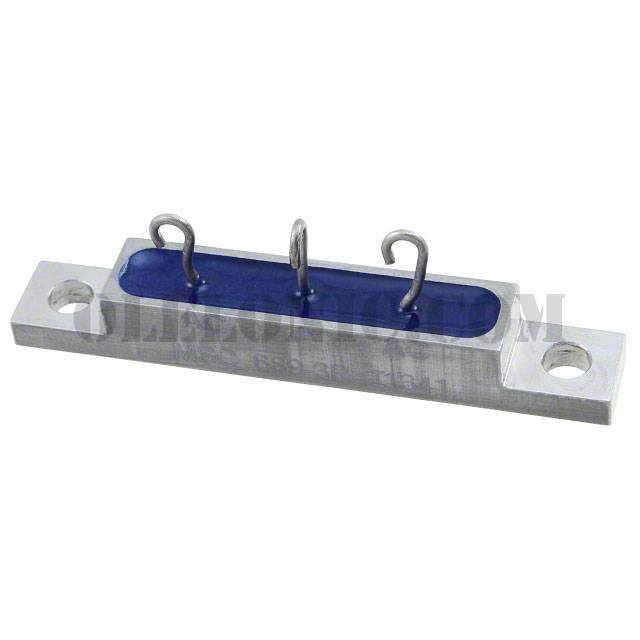

689-3P

Part Number689-3P

ManufacturerMicrosemi Corporation

DescriptionDIODE MODULE 300V 15A SMD

Datasheet681(e3),689(e3)

Package / CaseND, Module

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Cathode Standard 300V 15A Chassis Mount ND, Module

To learn about the specification of 689-3P, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 689-3P with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 689-3P.
We are offering 689-3P for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

689-3P - Product Attributes

Categories

Discrete Semiconductor Products / Diodes - Rectifiers - Arrays

Datasheet

681(e3),689(e3)

Standard Package

Manufacturer

Microsemi Corporation

Series

Packaging

Bulk

Part Status

Discontinued at Digi-Key

Diode Configuration

1 Pair Common Cathode

Diode Type

Standard

Voltage - DC Reverse (Vr) (Max)

300V

Current - Average Rectified (Io) (per Diode)

15A

Voltage - Forward (Vf) (Max) @ If

1.2V @ 10A

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Reverse Recovery Time (trr)

500ns

Current - Reverse Leakage @ Vr

10µA @ 300V

Operating Temperature - Junction

150°C (Max)

Mounting Type

Chassis Mount

Package / Case

ND, Module

Supplier Device Package
