Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	YXF Series
Standard Package	1
Manufacturer	Rubycon
Series	YXF
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	10µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	36.54mA @ 120Hz
Ripple Current @ High Frequency	87mA @ 100kHz
Impedance	2.3 Ohms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

100YXF33MEFC10X12.5	Rubycon, 33µF 100V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXF	View
50YXF2200MEFC18X35.5	Rubycon, 2200µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXF	View
63YXF10MEFCTA5X11	Rubycon, 10µF 63V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXF	View
10YXF220MEFC6.3X11	Rubycon, 220µF 10V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXF	View
63YXF220MEFCT810X20	Rubycon, 220µF 63V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXF	View
35YXF100MEFCT78X11.5	Rubycon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXF	View
50YXF47MEFCTA6.3X11	Rubycon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXF	View
35YXF470MEFCT810X20	Rubycon, 470µF 35V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXF	View
63YXF100MEFC10X12.5	Rubycon, 100µF 63V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXF	View
25YXF1000MEFCG412.5X20	Rubycon, 1000µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXF	View
25YXF220MEFCT78X11.5	Rubycon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXF	View
50YXF220MEFCT810X16	Rubycon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXF	View

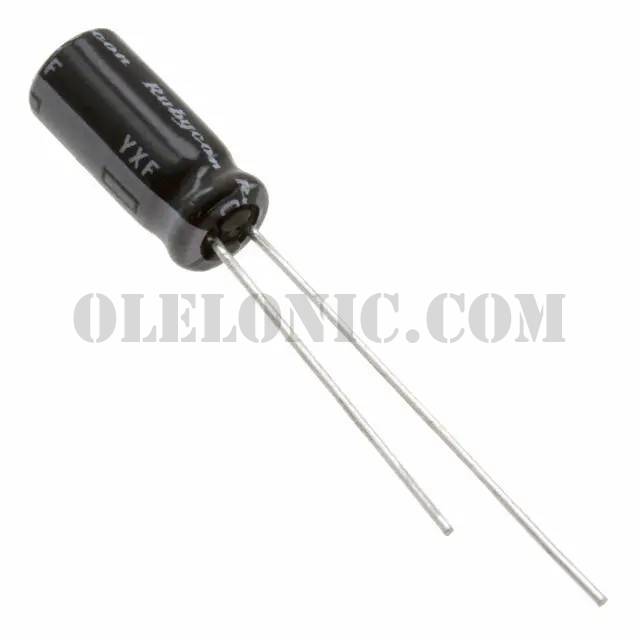

63YXF10MEFCTA5X11

Part Number63YXF10MEFCTA5X11
