Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	SGV Series Datasheet
Standard Package	500
Manufacturer	Rubycon
Series	SGV
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Lead Spacing	-
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

63SGV100M10X10.5	Rubycon, 100µF 63V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, SGV	View
35SGV10M5X6.1	Rubycon, 10µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, SGV	View
25SGV47M8X6.5	Rubycon, 47µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, SGV	View
100SGV47M12.5X13.5	Rubycon, 47µF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, SGV	View
100SGV10M8X10.5	Rubycon, 10µF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, SGV	View
100SGV10M8X10.5	Rubycon, 10µF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, SGV	View
35SGV330M12.5X16	Rubycon, 330µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, SGV	View
6.3SGV470M8X10.5	Rubycon, 470µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, SGV	View
25SGV330M10X10.5	Rubycon, 330µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, SGV	View
6.3SGV220M6.3X8	Rubycon, 220µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, SGV	View
25SGV100M8X10.5	Rubycon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, SGV	View
50SGV4.7M5X6.1	Rubycon, 4.7µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, SGV	View

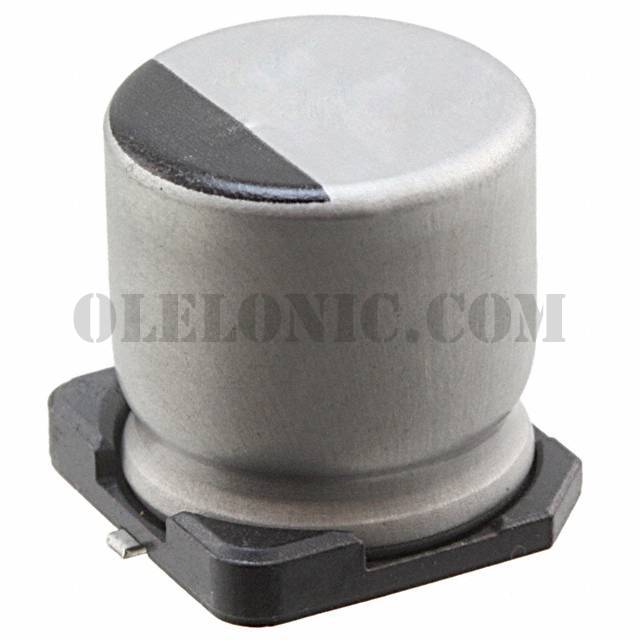

63SGV100M10X10.5

Part Number63SGV100M10X10.5
