Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	AX Series
Standard Package	2000
Manufacturer	Rubycon
Series	AX
Packaging	Bulk
Part Status	Active
Capacitance	680µF
Tolerance	±20%
Voltage - Rated	6.3V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Impedance	49 mOhms
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

6.3AX82MEFC5X7	Rubycon, 82µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, AX	View
6.3AX1000MEFC10X9	Rubycon, 1000µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, AX	View
6.3AX1000MEFC8X16	Rubycon, 1000µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, AX	View
25AX220MEFC8X9	Rubycon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, AX	View
10AX560MEFC8X9	Rubycon, 560µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, AX	View
400AX4R7MEFC6.3X14	Rubycon, 4.7µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, AX	View
10AX820MEFC10X9	Rubycon, 820µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, AX	View
400AX10MEFC10X12.5	Rubycon, 10µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, AX	View
8AX200MEFC6.3X7	Rubycon, 200µF 8V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, AX	View
400AX4.7MEFC8X9	Rubycon, 4.7µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, AX	View
6.3AX680MEFC8X9	Rubycon, 680µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, AX	View
400AX15MEFC10X16	Rubycon, 15µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, AX	View

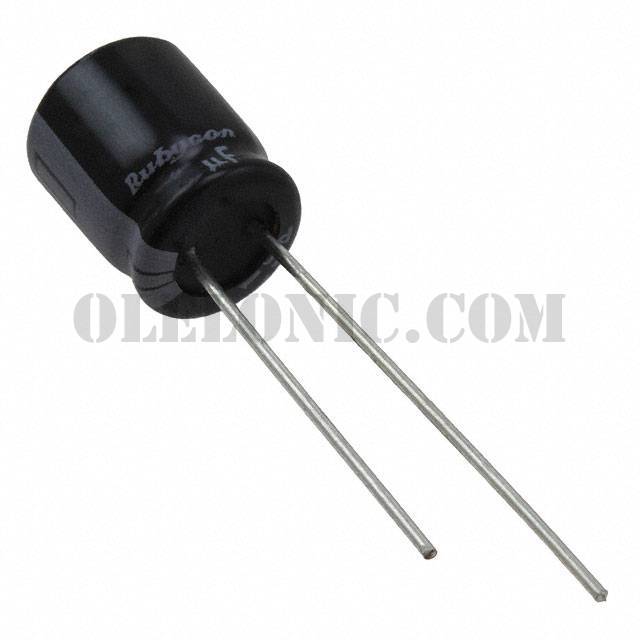

6.3AX680MEFC8X9

Part Number6.3AX680MEFC8X9
