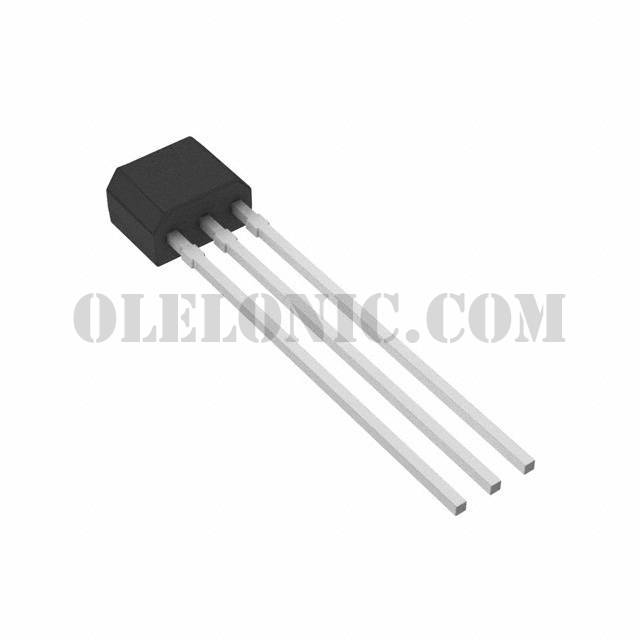

5LN01SP-AC

Part Number5LN01SP-AC

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 50V 100MA SPA

Datasheet5LN01SP

Package / CaseSC-72

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 50V 100mA (Ta) 250mW (Ta) Through Hole 3-SPA

To learn about the specification of 5LN01SP-AC, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 5LN01SP-AC with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 5LN01SP-AC.
We are offering 5LN01SP-AC for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

5LN01SP-AC - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

5LN01SP

Standard Package

2500

Manufacturer

ON Semiconductor

Series

Packaging

Tape & Reel (TR)

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

50V

Current - Continuous Drain (Id) @ 25°C

100mA (Ta)

Drive Voltage (Max Rds On, Min Rds On)

1.5V, 4V

Rds On (Max) @ Id, Vgs

7.8Ohm @ 50mA, 4V

Vgs(th) (Max) @ Id

1.3V @ 100µA

Gate Charge (Qg) (Max) @ Vgs

1.57nC @ 10V

Vgs (Max)

±10V

Input Capacitance (Ciss) (Max) @ Vds

6.6pF @ 10V

FET Feature

Power Dissipation (Max)

250mW (Ta)

Operating Temperature

150°C (TJ)

Mounting Type

Through Hole

Supplier Device Package

3-SPA

Package / Case

SC-72
