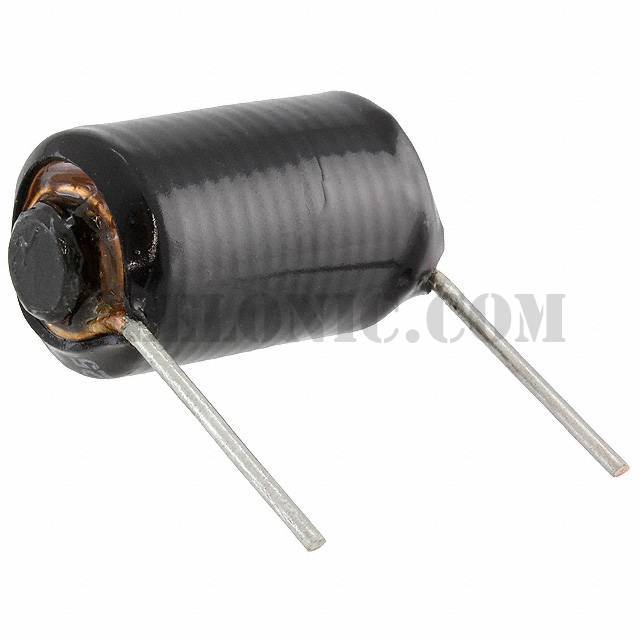

5520-RC

Part Number5520-RC

ManufacturerBourns Inc.

DescriptionFIXED IND 100UH 10A 27 MOHM TH

Datasheet5500 Series

Package / CaseRadial, Horizontal Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description100µH Unshielded Wirewound Inductor 10A 27mOhm Max Radial, Horizontal Cylinder

To learn about the specification of 5520-RC, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 5520-RC with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 5520-RC.
We are offering 5520-RC for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

5520-RC - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

5500 Series

Standard Package

Manufacturer

Bourns Inc.

Series

5500

Packaging

Bulk

Part Status

Obsolete

Type

Wirewound

Material - Core

Ferrite

Inductance

100µH

Tolerance

±20%

Current Rating (Amps)

10A

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

27mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-55°C ~ 105°C

Inductance Frequency - Test

1kHz

Mounting Type

Through Hole

Package / Case

Radial, Horizontal Cylinder

Supplier Device Package

Size / Dimension

0.940" Dia x 1.620" L (23.88mm x 41.15mm)

Height - Seated (Max)

Base Part Number
