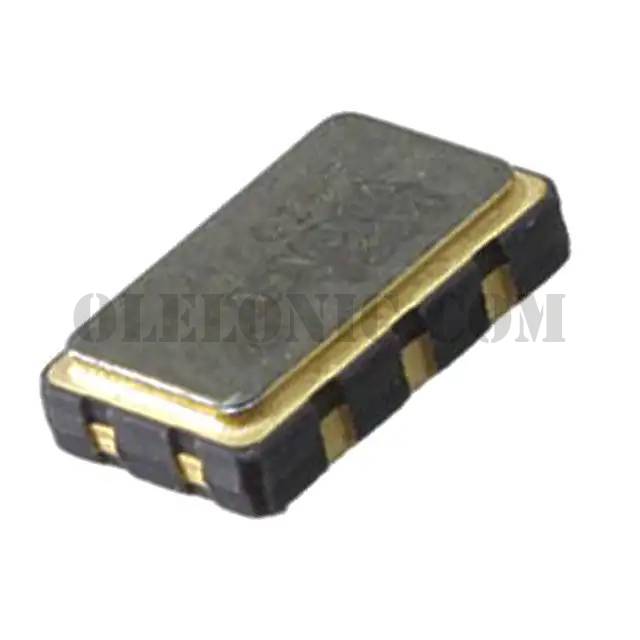

540BAA100M000BAGR

Part Number540BAA100M000BAGR

ManufacturerSilicon Labs

DescriptionXTAL OSC XO 100.0000MHZ LVDS SMD

DatasheetSI540 Datasheet

Package / Case6-SMD, No Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description100MHz XO (Standard) LVDS Oscillator 1.8V, 2.5V, 3.3V Enable/Disable 6-SMD, No Lead

To learn about the specification of 540BAA100M000BAGR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 540BAA100M000BAGR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 540BAA100M000BAGR.
We are offering 540BAA100M000BAGR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

540BAA100M000BAGR - Product Attributes

Categories	Crystals, Oscillators, Resonators / Oscillators
Datasheet	SI540 Datasheet
Standard Package	1
Manufacturer	Silicon Labs
Series	Si540, Ultra™
Packaging	Cut Tape (CT)
Part Status	Not For New Designs
Base Resonator	Crystal
Type	XO (Standard)
Frequency	100MHz
Function	Enable/Disable
Output	LVDS
Voltage - Supply	1.8V, 2.5V, 3.3V
Frequency Stability	±20ppm
Absolute Pull Range (APR)	-
Operating Temperature	-40°C ~ 85°C
Spread Spectrum Bandwidth	-
Current - Supply (Max)	111mA
Ratings	-
Mounting Type	Surface Mount
Package / Case	6-SMD, No Lead
Size / Dimension	0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max)	0.052" (1.33mm)
Current - Supply (Disable) (Max)	100mA
