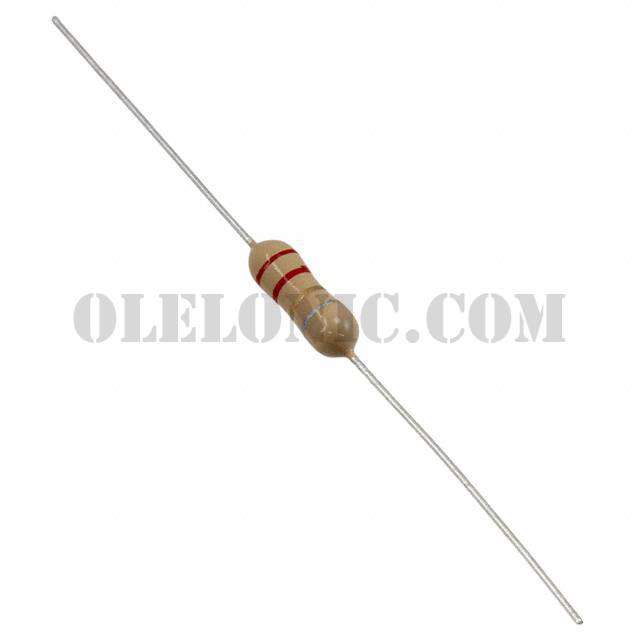

5300-05

Part Number5300-05

ManufacturerBourns Inc.

DescriptionFIXED IND 2.2UH 2.6A 31 MOHM TH

Datasheet5300 Series

Package / CaseAxial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2.2µH Unshielded Wirewound Inductor 2.6A 31mOhm Max Axial

To learn about the specification of 5300-05, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 5300-05 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 5300-05.
We are offering 5300-05 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

5300-05 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

5300 Series

Standard Package

500

Manufacturer

Bourns Inc.

Series

5300

Packaging

Bulk

Part Status

Obsolete

Type

Wirewound

Material - Core

Ferrite

Inductance

2.2µH

Tolerance

±10%

Current Rating (Amps)

2.6A

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

31mOhm Max

Q @ Freq

Frequency - Self Resonant

130MHz

Ratings

Operating Temperature

-55°C ~ 105°C

Inductance Frequency - Test

7.96MHz

Mounting Type

Through Hole

Package / Case

Axial

Supplier Device Package

Axial

Size / Dimension

0.160" Dia x 0.500" L (4.06mm x 12.70mm)

Height - Seated (Max)

Base Part Number
