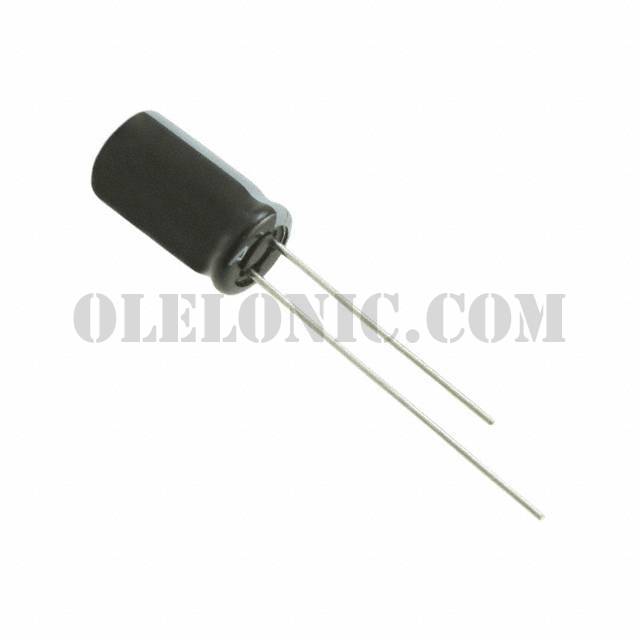

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	ZLJ Series
Standard Package	2000
Manufacturer	Rubycon
Series	ZLJ
Packaging	Bulk
Part Status	Active
Capacitance	56µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	7000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	250mA @ 120Hz
Ripple Current @ High Frequency	500mA @ 100kHz
Impedance	220 mOhms
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
