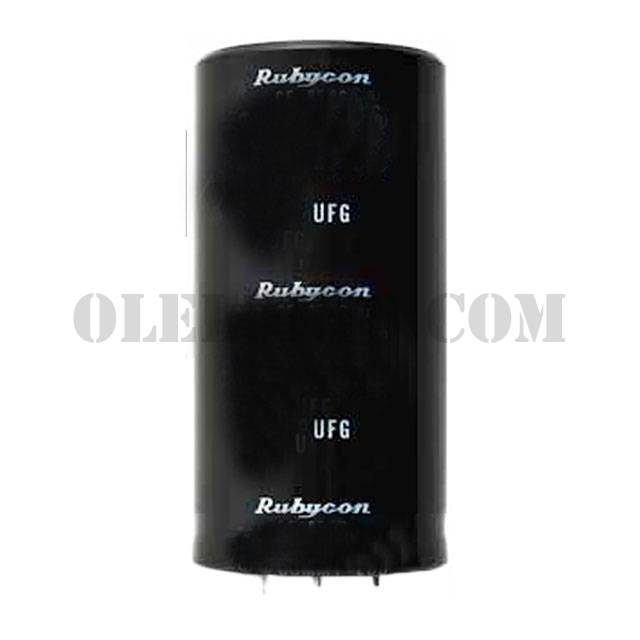

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UFG Series
Standard Package	50
Manufacturer	Rubycon
Series	UFG
Packaging	Bulk
Part Status	Active
Capacitance	820µF
Tolerance	±20%
Voltage - Rated	450V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 85°C
Operating Temperature	-25°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	5.06A @ 120Hz
Ripple Current @ High Frequency	7.084A @ 10kHz
Lead Spacing	0.886" (22.50mm)
Size / Dimension	1.378" Dia (35.00mm)
Height - Seated (Max)	3.031" (77.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
