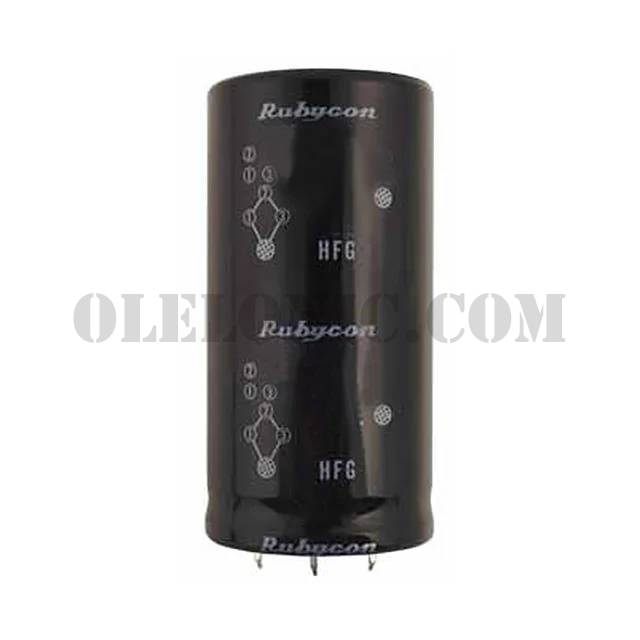

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	HFG Series
Standard Package	50
Manufacturer	Rubycon
Series	HFG
Packaging	Bulk
Part Status	Active
Capacitance	560µF
Tolerance	±20%
Voltage - Rated	450V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	3.3A @ 120Hz
Ripple Current @ High Frequency	4.62A @ 10kHz
Lead Spacing	0.886" (22.50mm)
Size / Dimension	1.378" Dia (35.00mm)
Height - Seated (Max)	2.441" (62.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - 4 Lead

420HFG680MBN35X65	Rubycon, 680µF 420V Aluminum Electrolytic Capacitors Radial, Can - 4 Lead 5000 Hrs @ 105°C, HFG	View
400HFG560MBN35X50	Rubycon, 560µF 400V Aluminum Electrolytic Capacitors Radial, Can - 4 Lead 5000 Hrs @ 105°C, HFG	View
420HFG820MBN35X75	Rubycon, 820µF 420V Aluminum Electrolytic Capacitors Radial, Can - 4 Lead 5000 Hrs @ 105°C, HFG	View
420HFG680MBN40X55	Rubycon, 680µF 420V Aluminum Electrolytic Capacitors Radial, Can - 4 Lead 5000 Hrs @ 105°C, HFG	View
400HFG820MBN35X65	Rubycon, 820µF 400V Aluminum Electrolytic Capacitors Radial, Can - 4 Lead 5000 Hrs @ 105°C, HFG	View
450HFG390MBN35X50	Rubycon, 390µF 450V Aluminum Electrolytic Capacitors Radial, Can - 4 Lead 5000 Hrs @ 105°C, HFG	View
420HFG820MBN40X60	Rubycon, 820µF 420V Aluminum Electrolytic Capacitors Radial, Can - 4 Lead 5000 Hrs @ 105°C, HFG	View
450HFG560MBN35X60	Rubycon, 560µF 450V Aluminum Electrolytic Capacitors Radial, Can - 4 Lead 5000 Hrs @ 105°C, HFG	View
350HFG2200MBN45X85	Rubycon, 2200µF 350V Aluminum Electrolytic Capacitors Radial, Can - 4 Lead 5000 Hrs @ 105°C, HFG	View
400HFG680MBN35X60	Rubycon, 680µF 400V Aluminum Electrolytic Capacitors Radial, Can - 4 Lead 5000 Hrs @ 105°C, HFG	View
400HFG1000MBN45X50	Rubycon, 1000µF 400V Aluminum Electrolytic Capacitors Radial, Can - 4 Lead 5000 Hrs @ 105°C, HFG	View
350HFG1000MBN40X60	Rubycon, 1000µF 350V Aluminum Electrolytic Capacitors Radial, Can - 4 Lead 5000 Hrs @ 105°C, HFG	View

450HFG560MBN35X60

Part Number450HFG560MBN35X60
