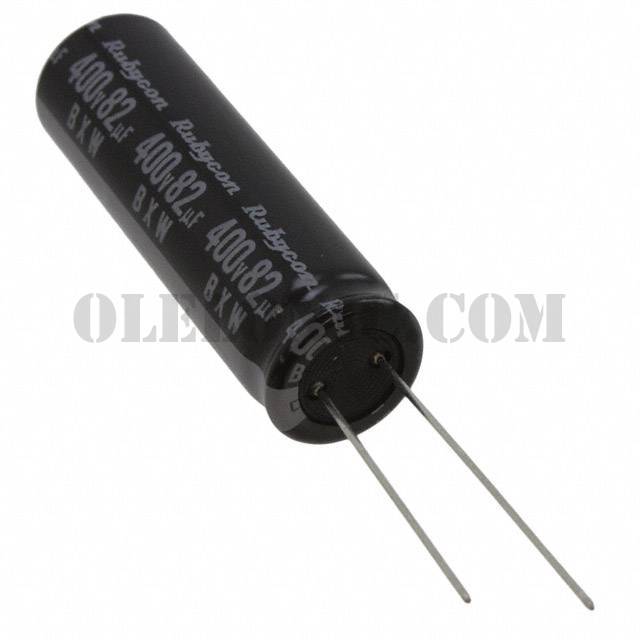

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	BXW Series
Standard Package	500
Manufacturer	Rubycon
Series	BXW
Packaging	Bulk
Part Status	Active
Capacitance	82µF
Tolerance	±20%
Voltage - Rated	450V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	12000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	670mA @ 120Hz
Ripple Current @ High Frequency	1.675A @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.571" Dia (14.50mm)
Height - Seated (Max)	1.654" (42.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

400BXW82MEFCG412.5X40	Rubycon, 82µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
450BXW47MEFR18X20	Rubycon, 47µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXW	View
450BXW47MEFR12.5X35	Rubycon, 47µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
450BXW56MEFR14.5X35	Rubycon, 56µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
450BXW18MEFC10X25	Rubycon, 18µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
450BXW56MEFR12.5X45	Rubycon, 56µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
400BXW180MEFR18X45	Rubycon, 180µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
400BXW120MEFR14.5X50	Rubycon, 120µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
400BXW220MEFR18X50	Rubycon, 220µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
450BXW15MEFR10X20	Rubycon, 15µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXW	View
450BXW33MEFR10X40	Rubycon, 33µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
450BXW47MEFR12.5X40	Rubycon, 47µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View

450BXW82MEFC14.5X40

Part Number450BXW82MEFC14.5X40
